Plan Description

The appeal of this classic Mediterranean-Modern plan is not merely in the facade. As you move into the split bedroom plan you cannot help but be impressed with the amount of living space and the beautiful covered rear lanai. The master has all the necessary amenities with walk-in closet and luxury bath. There are three additional bedrooms, one with a double door entrance which makes it perfect for a den or study.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 2
Stories: 1
Garages: 2


Depth : 62' 8"
Height : 20' 4"
Width : 54' 8"


Total : 2013 sq/ft
First Floor: 2013 sq/ft height 9' 4"
Garage: 448 sq/ft height 9' 4"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch


Bedroom 2:

155 sq/ft width 11' 6" x depth 13' 6"

Bedroom 3:

157 sq/ft width 11' 4" x depth 13' 10"

Bedroom 4/ Den:

166 sq/ft width 12' 5" x depth 13' 4"

Covered Entry Porch:

60 sq/ft

Covered Rear Lanai:

260 sq/ft width 25' x depth 11'

Family Room:

267 sq/ft width 14' 10" x depth 18'


75 sq/ft width 7' 6" x depth 10'


448 sq/ft width 19' 6" x depth 20' 6"


121 sq/ft width 10' 4" x depth 11' 8"

Master Bedroom:

229 sq/ft width 16' 4" x depth 14'


87 sq/ft width 9' 8" x depth 9'

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

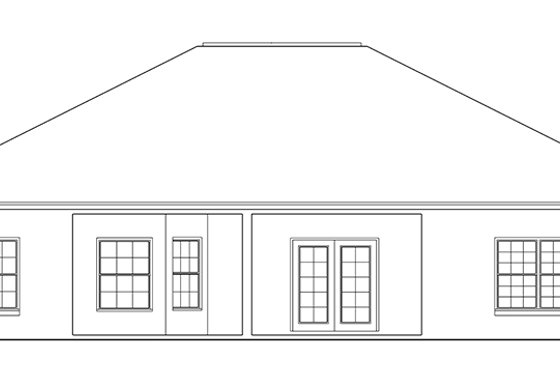

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

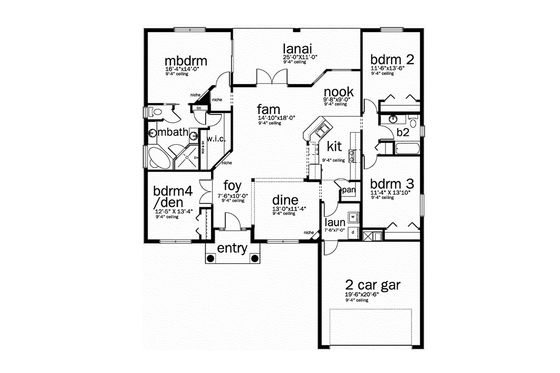

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
