Plan 406-9609

Photographs may show modified designs.
Plan 406-9609

Key Specs


2018
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


B The master suite presents an enchanting bay window setting while the ceiling raises up to 11'. The family room ceiling also raises in the center to 12'. The front rooms have 10' ceilings while the remaining rooms offer 9' ceilings. Graceful columns enhance the formal dining room. The upper floor offers an additional 240 square feet for expansion. onus Square footage is not included in the total heated/ac square footage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

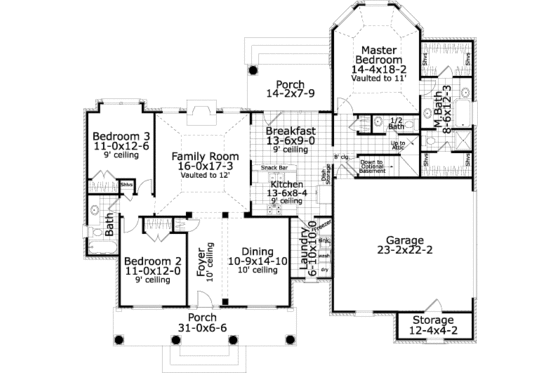

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

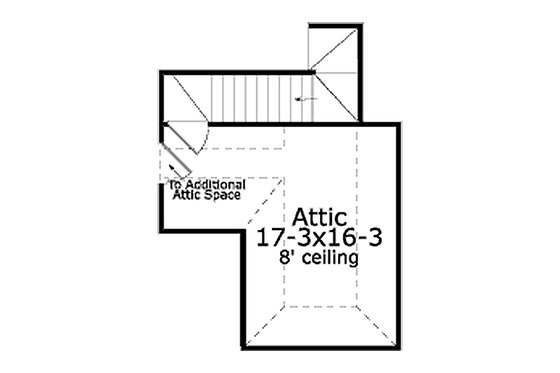

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 57' 10"
Height : 23'
Width : 66' 6"

Area

Total : 2018 sq/ft
Bonus: 70 sq/ft
First Floor: 2018 sq/ft
Garage: 557 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Main Floor Ceilings are 9'- 12'
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : 2x8 Framing
Roof Type : Shingle
Secondary Pitch : 18:12

Exterior Wall Framing

Exterior Wall Finish : Brick/stucco
Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Family Room Keeping Room
Master Sitting Area
Play Flex Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

50 sq/ft width 5' x depth 10'

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

137 sq/ft width 11' x depth 12' 6"

Breakfast Room:

121 sq/ft width 13' 6" x depth 9'

Dining Room:

150 sq/ft width 10' 9" x depth 14'

Foyer:

101 sq/ft width 6' 10" x depth 14' 10"

Garage:

513 sq/ft width 23' 2" x depth 22' 2"

Garage Storage:

51 sq/ft width 12' 4" x depth 4' 2"

Gathering Room:

276 sq/ft width 16' x depth 17' 3"

Kitchen:

112 sq/ft width 13' 6" x depth 8' 4"

Master Bathroom:

104 sq/ft width 8' 6" x depth 12' 3"

Master Bedroom:

261 sq/ft width 14' 5" x depth 18' 2"

Master Closet:

34 sq/ft width 8' 6" x depth 4'

Master Closet Two:

48 sq/ft width 8' 6" x depth 5' 9"

Porch - Rear:

109 sq/ft width 14' 2" x depth 7' 9"
