Modern House Plan 497-53

Key Specs


Plan Sq Ft

2032
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$156.00
Additional Construction Sets$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$396.00
$120.00
$236.00
$31.20
$120.00
Mirror Reversed Sets$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

$796.00
Subtotal
NOW $908.16
You save $227.04
(20% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

2032
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description


The design of this house started with a simple rectangle. Several spaces were carved out from the rectangle to articulate an entrance and create indentations that feature bi-folding glass doors which connect to outdoor deck spaces. This house was designed in such a way that a wall of cabinetry can serve as an organizational catalyst in the otherwise open space. A side door would work well with or without a garage to provide an everyday entrance into a mudroom and laundry space. The optimal orientation for this plan is with the bi-folding doors facing south. The living room is filled with abundant natural daylight thanks to the high windows along the wall. Indoor comfort is maximized due to the overhangs that minimize direct sunlight from the summer sun, yet permit it in the winter when it is lower in the sky. The open floor plan with loft-like double-height ceilings and slate floors create a sophisticated, modern space. The electrical outlets in the glass wall cabinets are the perfect place to charge your smart phone and hide your stereo and dvd player. By day, the mezzanine on the upper level is a great place for a home office. By night, the high-end stainless steel lighting fixture provides ultimate mood lighting with its dimmable controls. Wine bottle pendant lights are a novel reclamation of a common kitchen staple and will consistently be a conversation piece at each dinner party. The quartz counter and table material tie the two surfaces together and allow the dining table to double as a kitchen island. The kitchen appliance suite features in-wall oven and microwave, a gas range, and overhead vent. The accordion style doors create a dramatic opening between the dining room and the patio, instantly transforms your dining room into a charming Parisian café, all in the privacy of your own home. The bedroom on the first floor also features a folding door that extends the room’s area onto the patio during nice summer days. Strategically placed landscaping such as bamboo can create a natural barrier between adjoining properties and improve the aesthetic view. This bedroom can also serve as a hobby room or private study and is generous in area to accommodate a desk, shelving, and sizable closets. The windows on either side of the room admit ample natural light minimizing the need for artificial lighting during the day. The second floor features a mezzanine area that is great for either a lounge off the bedroom or an office or study space. A private roof deck is a great way to experience a private outdoor setting in even in dense urban environments. Pocket doors allow for a continuous open flow of spaces. 16 feet of closet space provides plenty of storage for your clothing and personal belongings. The window nook at the end of the closet block is the perfect retreat at the end of a long day. An alternate closet design is included. This roof deck is a great place for private sunbathing during sunny summer days. The wall slats can be configured to block the line of sight from the street. The roof environment can be enhanced with planters that not only provide a calming ambiance but also shade the roof from direct sunlight. The luxurious bathroom features generous space for tub, shower stall, and toilet. The window lets in plenty of natural light without sacrificing privacy. An Energy Star bathroom fan maintains indoor air quality by removing moisture and mitigating against mold growth. This home also comes with details for a matching 24’ x 24’ detached garage including elevations, sections, and details. See house plan #497-22 for a version of this home with an attached garage.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

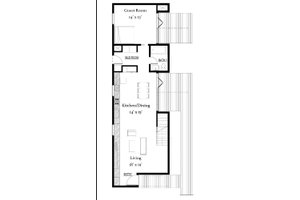

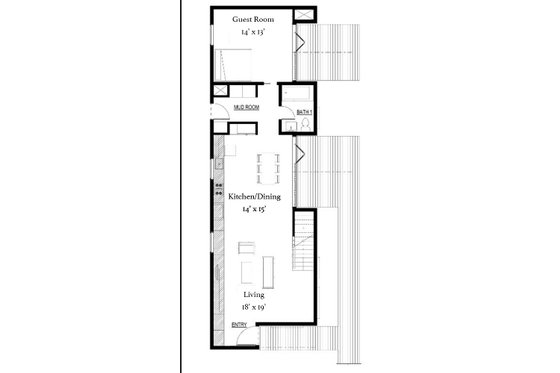

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Floor Plan - Main Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 2
Garages: 2

Dimension

Depth : 64' 10"
Height : 22' 6"
Width : 20'

Area

Total : 2032 sq/ft
Decks : 798 sq/ft
Main Floor : 1174 sq/ft
Upper Floor : 858 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8' 2"
Upper Ceiling Ft : 8' 2"

Roof

Primary Pitch : Flat
Roof Framing : Truss/ Stick
Roof Type : Flat

Exterior Wall Framing

Exterior Wall Finish : Fiber Cement Cladding Panels
Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Additional Room Features

Den Office Study Computer
Great Room Living Room
Mud Room

Garage Features

Detached Garage

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set
