This two-story Florida-inspired contemporary vacation home fits neatly
on a narrow lot. On the upper floor, the living room flows into the
dining area, which is open to the kitchen. The ground floor den could be
a home office, guest bedroom, art studio, or you name it.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

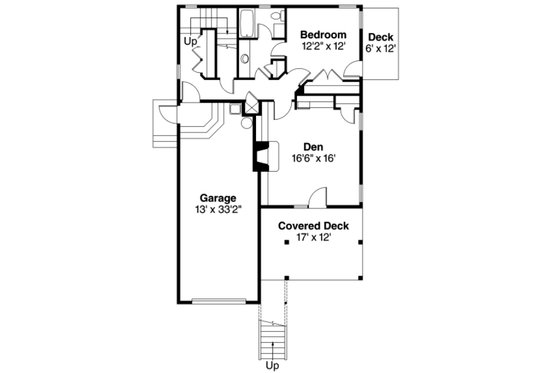

Floor Plan - Main Floor

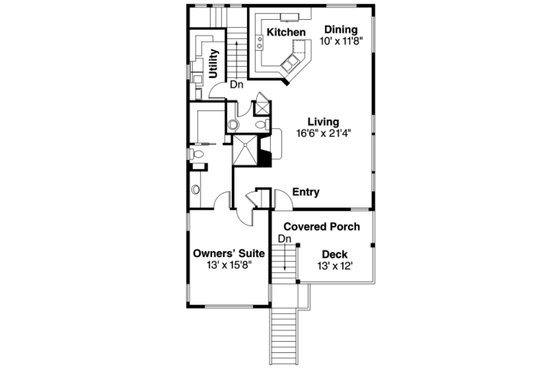

Floor Plan - Upper Floor
Full Specs & Features
First Floor: 1212 sq/ft height 9'
Garage: 449 sq/ft height 9'
Second Floor: 829 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 5:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Front Entry Garage
Suited For Narrow Lot
Suited For View Lot
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
146 sq/ft width 12' 2" x depth 12'
156 sq/ft width 13' x depth 12'
72 sq/ft width 6' x depth 12'
204 sq/ft width 17' x depth 12'
264 sq/ft width 16' 6" x depth 16'
116 sq/ft width 10' x depth 11' 8"
431 sq/ft width 13' x depth 33' 2"
351 sq/ft width 16' 6" x depth 21' 4"
203 sq/ft width 13' x depth 15' 8"
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

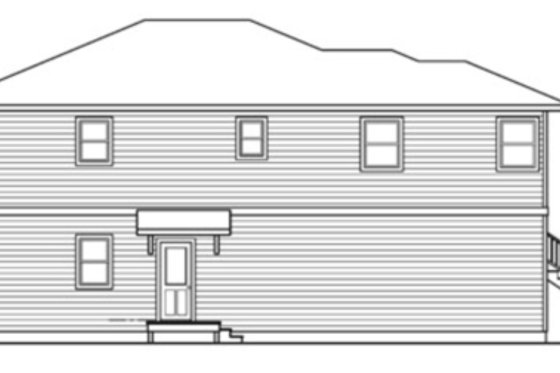

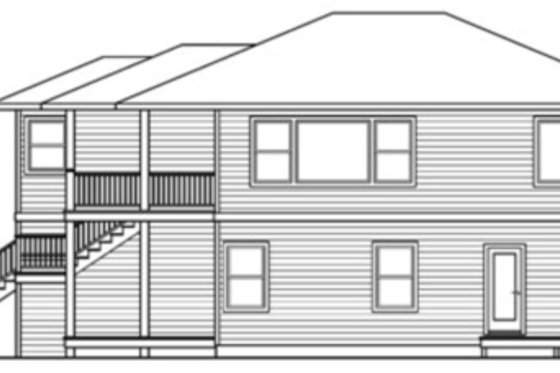

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
