A home's facade can tell a lot about what lies inside. How it is designed on the outside often describes whether its interior keywords are comfort, luxury, tradition or all of the above. But the keyword for this design is delightful--inside and out! Fanlights, gables and corner quoins add a touch of character that continues beyond the covered porch. The foyer leads to a breakfast nook and a U-shaped kitchen that continue on to a great room with a central fireplace and a separate dining area with access to the rear yard. The master bedroom, tucked away on the first floor, features a comfortable sitting area, a walk-in closet and a private master bath. Special attention is given to those with a teenager or with a frequent visiting guest by providing a special bedroom on the second floor with a walk-in closet and a private full bath with separate linen space. Two additional bedrooms share a full hall bath. Completing this amenity-filled plan is a bonus room that can be used for a variety of needs--an office, a computer room or a games room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Other Floor Plan

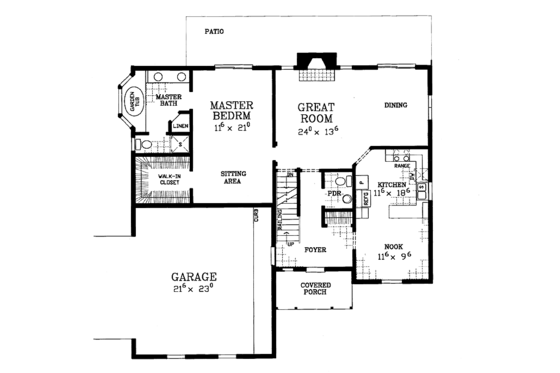

Floor Plan - Main Floor Plan

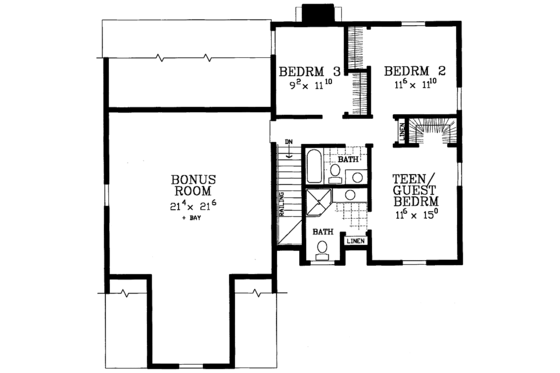

Floor Plan - Upper Floor Plan
Full Specs & Features
Bonus: 638 sq/ft
First Floor: 1286 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Formal Living Room / Parlor
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
