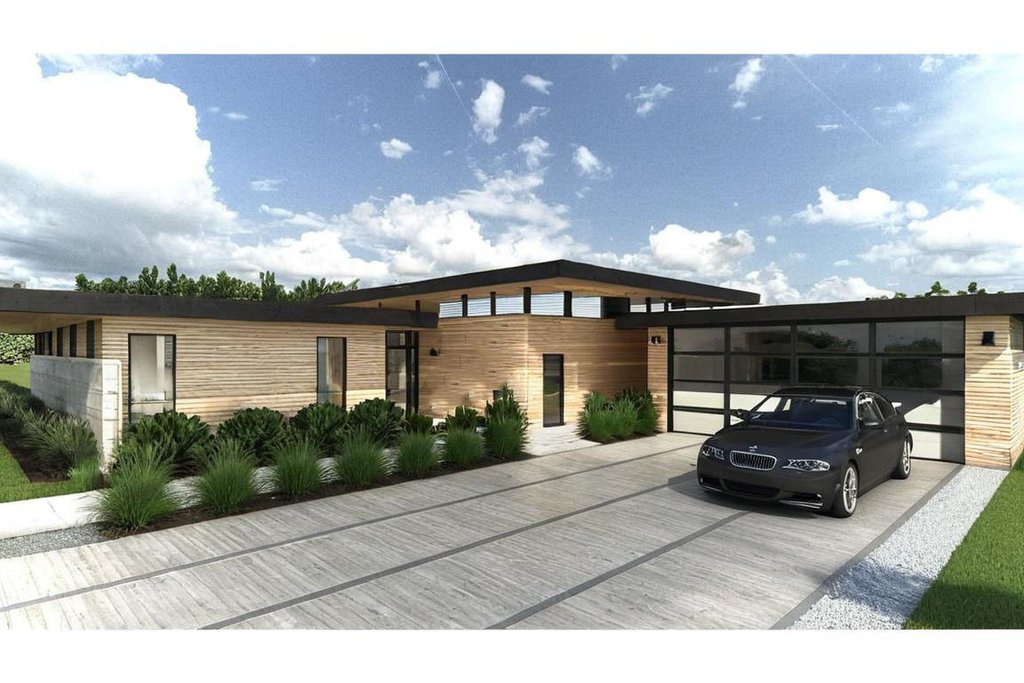

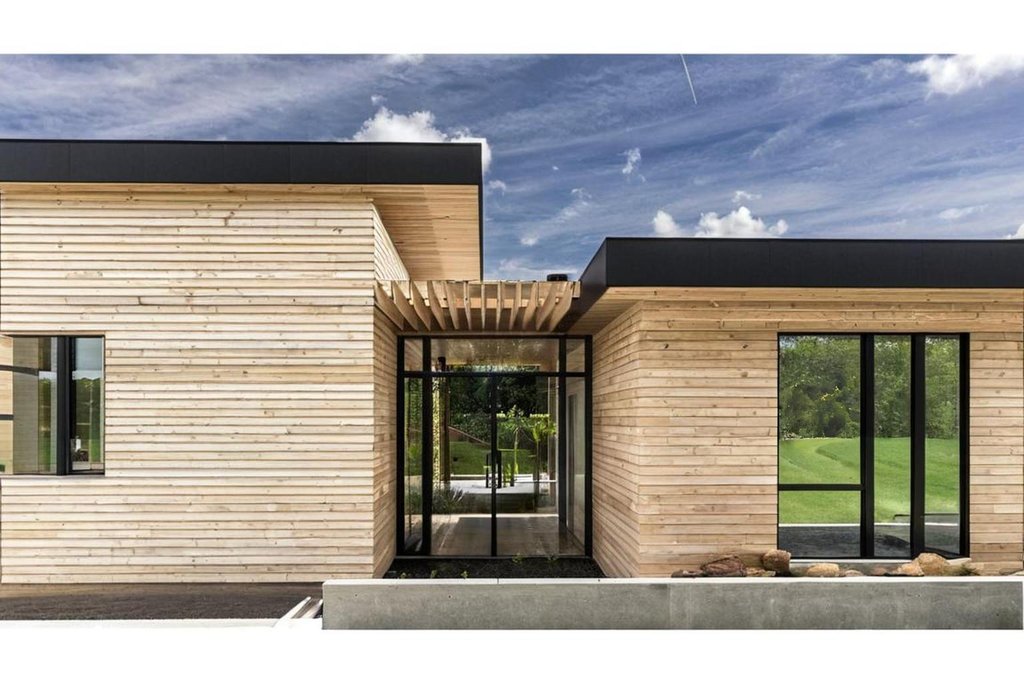

Three words best describe this design - functional, livable, stylish - MODÂ-57. Upon entering this open plan home, a variety of innovative features immediately catch your eye. First, there's the entry itself and its indoor-outdoor corridor that draws you into the expansive light filled living room and kitchen/dining room. Second, a wall of windows brings a sense of airiness to the space and finally, you notice the massive fireplace where your airiness feeling is followed by a sense of warmth that continues into an adjacent bedroom opposite the fireplace. Beyond the entry you will find the secluded master bedroom and master bath. You will also find a large walk-in closet and conveniently located laundry room complete with a nearby space that is perfect for a spare bedroom or office.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

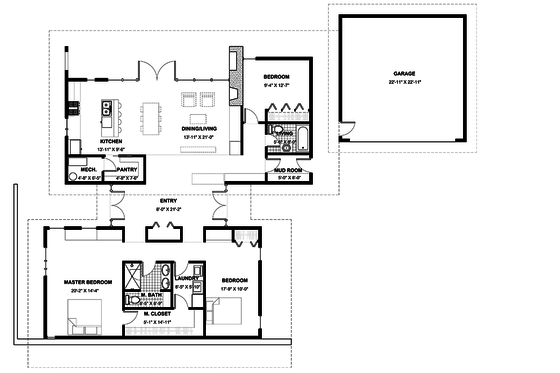

Floor Plan - Main Floor
Full Specs & Features
Garage : 576 sq/ft
Main Floor : 2052 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One printed set for bidding purposes only. Not a legal building set for construction.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
Our Vision is that buildings, when thoughtfully designed, will uplift the sprit, nourish the mind and contribute to the health of our bodies while respecting the environment in which they are placed Coates Design, Inc. is gaining a sterling reputation for offering innovative architectural and sustainable design services for a wide range of projects. We pride ourselves on consistently exceeding our clients’ goals, on both large and small construction projects. Matthew Coates is an award-winning architect, with 12 years of sustainable design and consulting experience. He holds a Masters degree from the University of Illinois and received his undergraduate from Lawrence School of Design. His project design experience includes both large and small projects; from multi-million dollar airports to single family residences.
