Plan 498-6

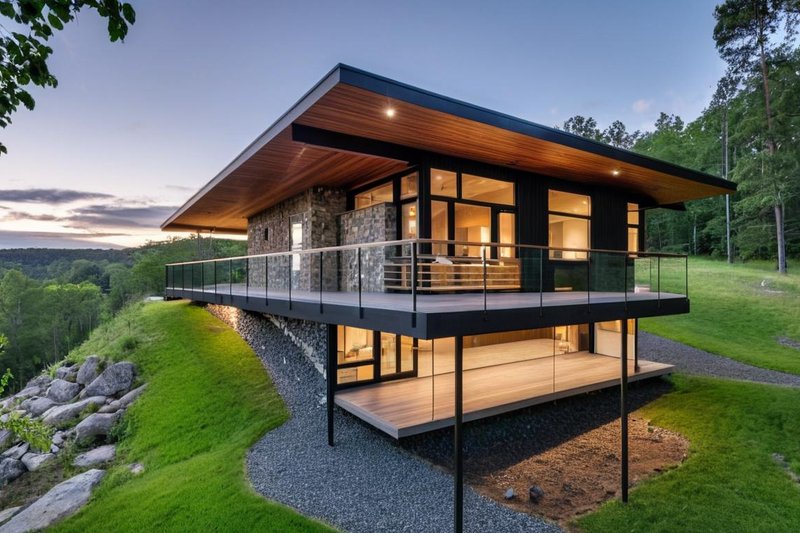

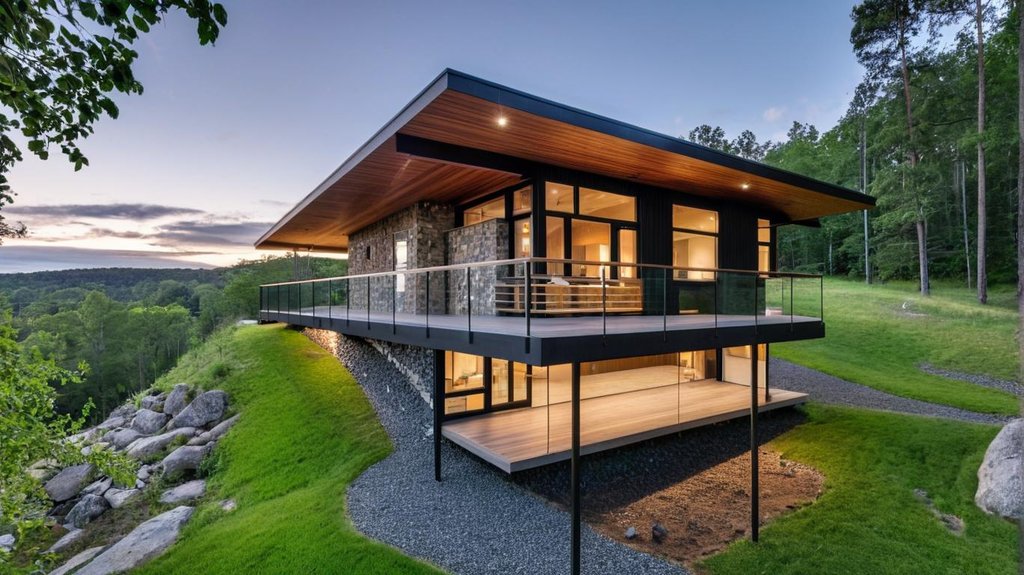

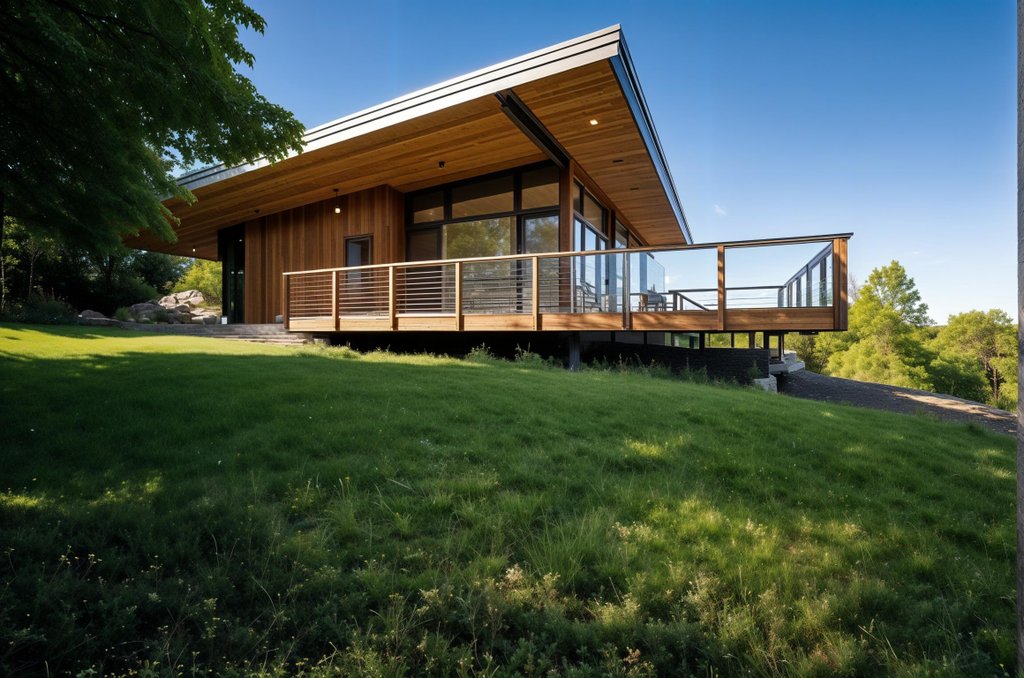

Photographs may show modified designs.
Plan 498-6

Key Specs


3056
sq ft

4
Beds

3.5
Baths

2
Floors

0
Garages

Plan Description


This 4 bedroom 3.5 bath home incorporates an open concept floor plan and large windows invites the outdoors in. Perfect for entertaining friends and family or as a getaway from it all. In addition to bringing the outdoors in, an over-sized roof brings the comfort of indoors outside for year round enjoyment.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Floor Plan - Lower Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 0

Dimension

Depth : 30'
Height : 24'
Width : 48'

Area

Total : 3056 sq/ft
Decks : 736 sq/ft
Lower Floor : 1309 sq/ft
Main Floor : 1747 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'
Main Ceiling : 12'

Roof

Primary Pitch : 1:12

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Play Flex Room
Storage Area

Entryway

Friend S Entry

Lot Characteristics

Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Courtyard
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Suited For Vacation Home

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1600.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1700.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$1800.00
5 printed plan sets mailed to you.

8 Copy Set

$1850.00
8 printed plan sets mailed to you.

CAD Set

$2300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1400.00
One printed set for bidding purposes only. Not a legal building set for construction.

Study Set

$1400.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Walk Out Basement

$0.00
Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
