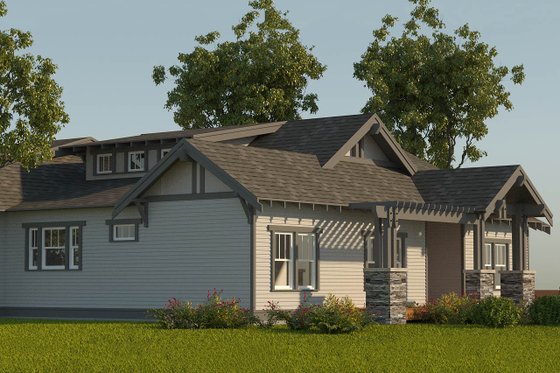

This home is a Craftsman style plan that incorporates universal design and efficient use of space through an open living space, blended hallways, and built in features. This single story, three bedroom, 2.5 bathroom plan takes advantage of natural day lighting through upper clerestory windows in the main living area. The covered front porch and entry provides a great outdoor space in addition to the backyard porch and patio. The kitchen features an island workspace and breakfast nook and the master suite includes a very large walk-in closet. This plan also includes a study and a shop that is situated between the two-car garage and house, providing additional workspace or storage. At 2,070 square feet, this is a great mid-sized home for couples or families alike. - Room Sizes - Garage: 23' x 23' Shop: 19' x 20'6" Laundry: 8'6" x 7'3" Powder: 6' x 7'6" Mud: 4'3" x 4' Nook: 8'6" x 9'6" Kitchen: 11' x 15'6" Dining: 11' x 18' Living: 12' x 18' Master: 14' x 15' M. Bath: 16'3" x 6'9" M. WIC: 9'9" x 6'4" Study; 11' x 11'3" Covered Entry porch: 9' x 15' Pergola deck: 16' x 6' Entry: 5' x 5'9" Bedroom #1: 10'6" x 10'6" Bedroom #2: 11'3" x 11' Hall Bath: 10'6" x 5'3" Rear covered porch: 8' x 12'
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

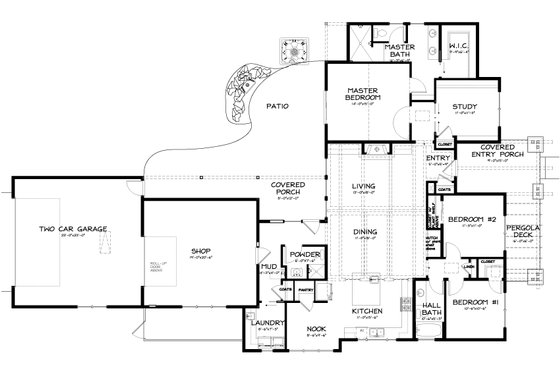

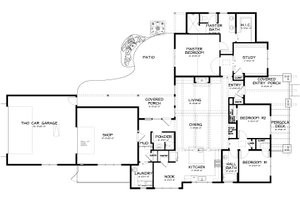

Floor Plan - Main Floor Plan
Full Specs & Features
Decks : 93 sq/ft
Garage : 576 sq/ft
Main Floor : 2070 sq/ft
Patios : 367 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Horizontal Lapped
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
The typical plan set will include:
Energy Detail; drawings
Foundation Plan: 1/4" - 1'0"
Main and Upper Level Floor Framing: 1/4" - 1'0"
Main and Upper Level Floor Plan: 1/4" - 1'0"
Roof Framing Plan: 1/4" - 1'0"
Building Sections: 1/4" - 1' 0"
Typical Wall Section: 1/2" - 1' 0"
Electrical switch and outlet plan: 1/4" - 1'0"
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
