Plan 472-8

Photographs may show modified designs.
Plan 472-8

Key Specs


2090
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


Stand out on a smallish lot with this fun modern home design. The main level flows out from the living room to a back covered patio for easy indoor-outdoor movement. An island in the kitchen overlooks the casual dining room. On the second level, the master suite boasts a big shower, two sinks, separate tub, and even a private balcony. Two additional bedrooms share the hall bath and each include a walk-in closet. The loft can become a reading area or open office.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

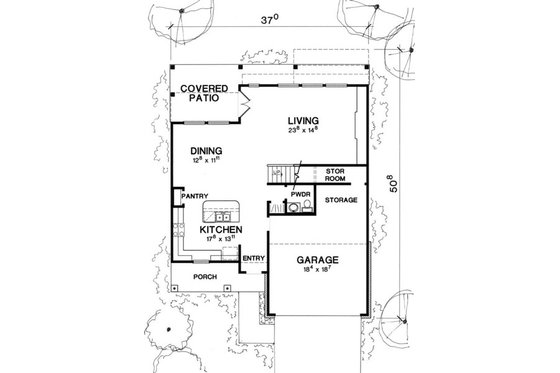

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 50' 8"
Height : 27' 6"
Width : 37'

Area

Total : 2090 sq/ft
First Floor: 923 sq/ft height 10'
Garage: 448 sq/ft height 10'
Second Floor: 1167 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4:12
Roof Framing : stick

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco
Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Loft
Storage Area
Upstairs Laundry

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

Structural Information Provided

Foundation Drawing

Rooms

Bedroom 2:

141 sq/ft width 13' x depth 10' 11"

Bedroom 3:

130 sq/ft width 13' x depth 10'

Dining Room:

150 sq/ft width 12' 8" x depth 11' 11"

Garage:

340 sq/ft width 18' 4" x depth 18' 7"

Kitchen:

245 sq/ft width 17' 8" x depth 13' 11"

Living Room:

347 sq/ft width 23' 8" x depth 14' 8"

Loft:

137 sq/ft width 12' 8" x depth 10' 10"

Master Bedroom:

222 sq/ft width 13' 4" x depth 16' 8"

What's included in this plan set


See a sample plan set
  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1445.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1545.00
5 printed plan sets mailed to you.

8 Copy Set

$1645.00
8 printed plan sets mailed to you.

CAD Set

$2445.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$125.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$250.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
