Plan 23-2484

Photographs may show modified designs.
Plan 23-2484

Plan Description

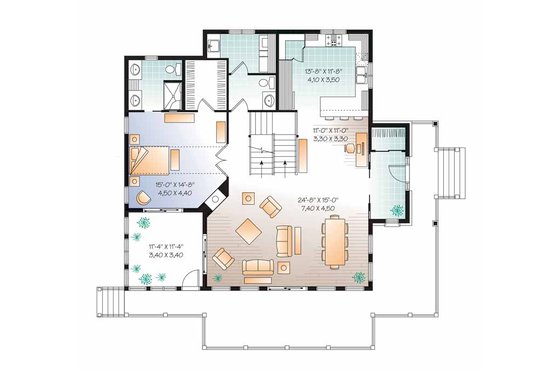

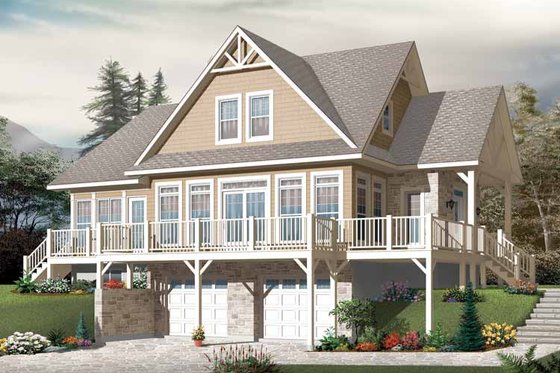

Here's a beautiful vacation home or everyday residence for a sloping lot. The main level holds the spacious living/dining room, with a two-sided fireplace shedding warmth here and to the master suite on the other side. A snack-bar counter and walk-in pantry enhance the kitchen, which even offers a view outside from the cooktop. Besides its romantic fireplace, the master suite enjoys a private bath with a large shower and two sinks, and sliding doors to the screened porch. Upstairs, you'll find two more bedrooms, a full bathroom, and a small loft.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 40' 4"
Height : 33' 8"
Width : 44'

Area

Total : 2102 sq/ft
First Floor: 1424 sq/ft height 9'

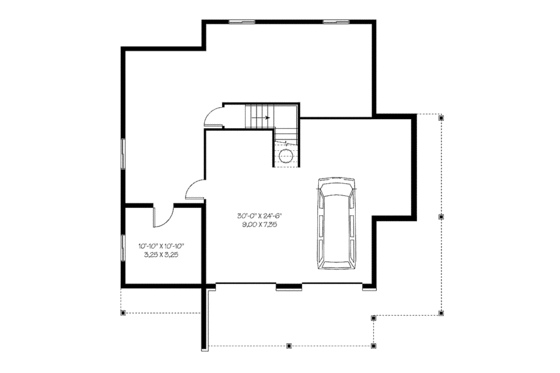

Garage: 703 sq/ft

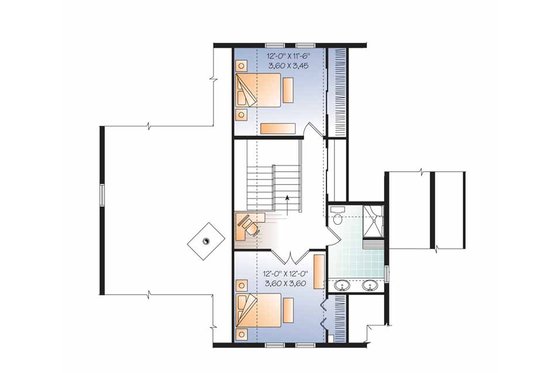

Second Floor: 678 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 0:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Outdoor Spaces

Wrap Around Porch

Rooms

Bedroom 2:

138 sq/ft width 12' x depth 11' 6"

Bedroom 3:

144 sq/ft width 12' x depth 12'

Garage:

735 sq/ft width 30' x depth 24' 6"

Great Room:

370 sq/ft width 24' 8" x depth 15'

Kitchen:

182 sq/ft width 15' 8" x depth 11' 8"

Master Bedroom:

9 sq/ft width 1' 2" x depth 8'

Office:

121 sq/ft width 11' x depth 11'

Porch - Screened:

128 sq/ft width 11' 4" x depth 11' 4"

What's included in this plan set


See a sample plan set

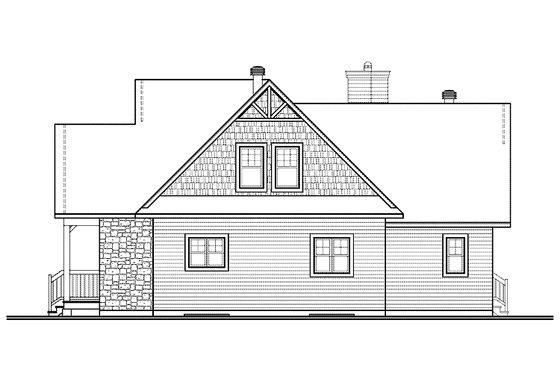

Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
*See important information before purchasing

Pricing


Plan Options

5 Copy and PDF Set

$1320.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1320.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$1515.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2115.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$425.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$425.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
