Plan 23-2609

Photographs may show modified designs.
Plan 23-2609

Key Specs


Plan Sq Ft

2105
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Plan Description


Imagine relaxing on the porch of this getaway cottage, holding a cup of tea and enjoying the view. On chilly evenings, head inside to the open living areas. The kitchen's large island makes cooking a social activity, while windows over the sink continue the outdoor connection. The master suite sits on this floor and invites you to relax in the large shower. Upstairs, three more bedrooms and a hall bathroom offer plenty of room for family and friends. Other highlights include the large walk-in pantry, a walk-in closet in the master suite, and the spacious laundry room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

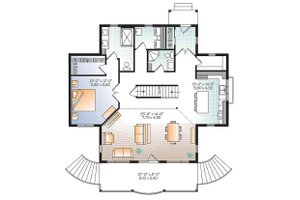

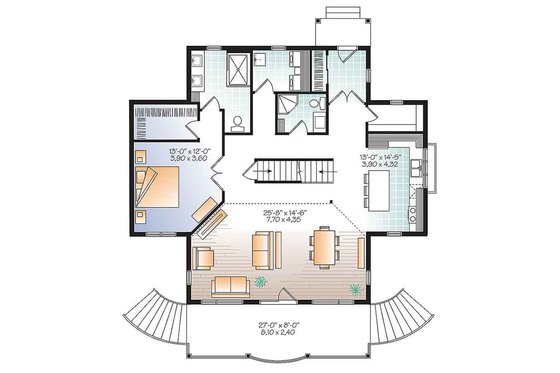

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

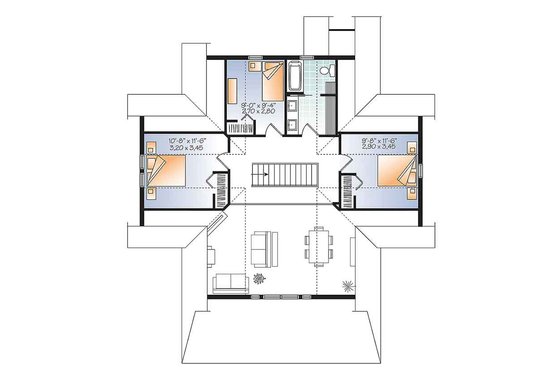

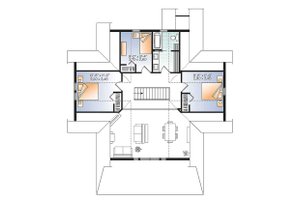

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 0

Dimension

Depth : 38'
Height : 24' 3"
Width : 44'

Area

Total : 2105 sq/ft
First Floor: 1366 sq/ft height 9'
Second Floor: 739 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

What's included in this plan set


See a sample plan set

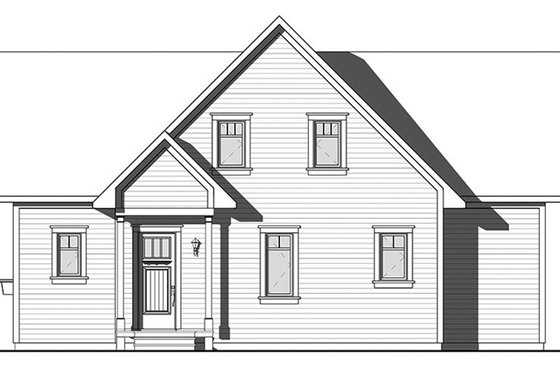

    Exterior Elevations (front, rear, left & right sides) typically include:
    • Floor and ceiling heights
    • Dimensions of standard windows
    • Dimensions of roof overhangs
    • Location of all needed flashings (mention of “typical” in most cases)
    • Height and location of foundation indicated in dashed lines
    • Type of finishing and textures (we write siding, horizontal or vertical but not the company)
    • Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
    Foundation plans typically include:
    • All exterior and interior dimensions
    • Thickness of foundation walls (if variable)
    • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
    • Location of stairwell
    • Location and sizes of windows
    • Location and dimensions of footings (where applicable and required)
    Floor plan(s) typically include:
    • All interior and exterior dimensions (included but not as a schedule)
    • Location and sizes of doors and windows
    • Indication of the structure above (second floor or roof)
    • Indication of details that are available on other pages
    Roof plans typically include:
    • Location of all the different trusses needed
    • The general overcharge of the roof compared to the floor footprint underneath
    Building cross-section(s) and truss details typically include:
    • All the different floor and ceiling heights
    • Dimensions and design of trusses
    • Dimensions and details of overhand
    • Roof pitch on all truss sections
    Construction details typically include:
    • Roof sections
    • Sections of concrete wall with wood connection
    • Section of walls with particulars called out
    • Section of concrete porch and connection with wood frame
    • Foundation particulars in the garage entrance
    • Components of certain types of walls (ex: between garage and living quarters)
    Typical wall sections typically include;
    • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
    • Note: This plan does not include HVAC, electrical and plumbing.
*See important information before purchasing

Pricing


Plan Options

5 Copy and PDF Set

$1320.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Set

Best Value!
$1515.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2115.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Crawlspace

$425.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$425.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
