Not a bit of wasted space in this home! The great room is made special
with a tray ceiling and lots of windows for light. Bedrooms 2 and 3 are
large and share a bath with plenty of storage. All bedrooms have a walk
in closet. Bedroom 4 could be used as a home office optional door from
foyer if desired. The full bath makes it special for guests. The kitchen
has an island cook top, wall oven, snack bar and walk in pantry. A view
onto the patio can be seen from the kitchen sink. The master bedroom is
located for privacy and those midnight snacks! A spa style bath contains
a corner whirlpool, large shower, two sinks and easy access to a 8' x 10
walk in closet. A mud room is designed using a storage bench with
drawers for storage. The look of this house is a touch of home with a
design for today.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

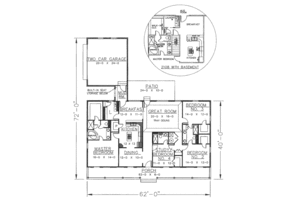

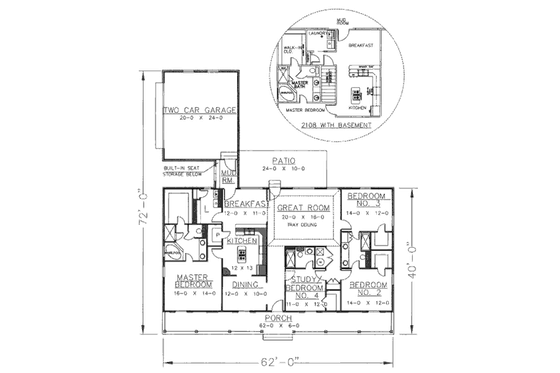

Floor Plan - Main Floor
Full Specs & Features
First Floor: 2156 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
168 sq/ft width 14' x depth 12'
168 sq/ft width 14' x depth 12'
132 sq/ft width 12' x depth 11'
120 sq/ft width 12' x depth 10'
480 sq/ft width 20' x depth 24'
320 sq/ft width 20' x depth 16'
156 sq/ft width 12' x depth 13'
224 sq/ft width 16' x depth 14'
240 sq/ft width 24' x depth 10'
Porch - Front:
372 sq/ft width 62' x depth 6'
132 sq/ft width 11' x depth 12'
