The single level Cape works well on deeper lots with narrow frontage. The common living spaces in this house are very spacious and open while the sleeping areas are more private. The location and close proximity of the bedrooms make this design a great fit for a family or those with single level living needs. This plan has three large bedrooms and two full baths which provide comfortable living accommodations for a family of 2 to 5.
This floor plan is a combination of private and open spaces. The large eat in kitchen and living room open up to each other. As you move towards the rear of the house the spaces become more compartmentalized and private in the bedrooms. The plan hosts large areas and all the functional spaces needed for a family of 2 to 5 people.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

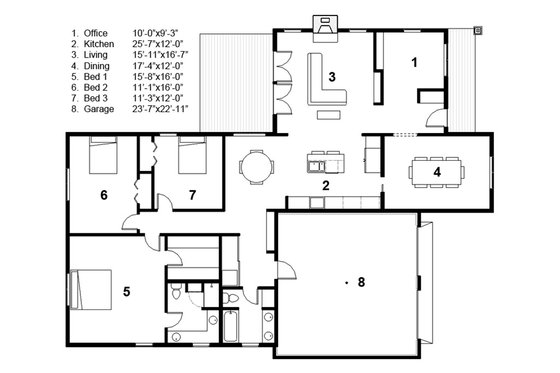

Floor Plan - Main Floor
Full Specs & Features
Decks : 273 sq/ft
Main Floor : 2157 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Stick
Exterior Wall Framing
Exterior Wall Finish : Cedar Shingle Siding
Framing : 2"x6"
Additional Room Features
Den Office Study Computer
Great Room Living Room
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
