Plan 20-2416

Photographs may show modified designs.
Plan 20-2416

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 40'
Height : 38' 2"
Width : 57' 4"

Area

Total : 2264 sq/ft
Garage : 606 sq/ft
Main Floor : 1206 sq/ft
Upper Floor : 1058 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8/12
Roof Framing : Stick
Secondary Pitch : 10/12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake Slingle
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Mud Room
Play Flex Room
Storage Area
Upstairs Laundry
Workshop

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

What's included in this plan set


See a sample plan set
  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria

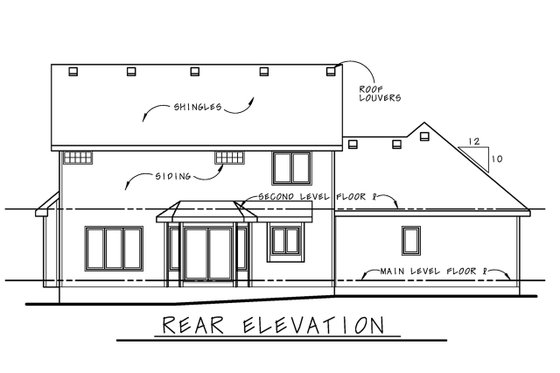

  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

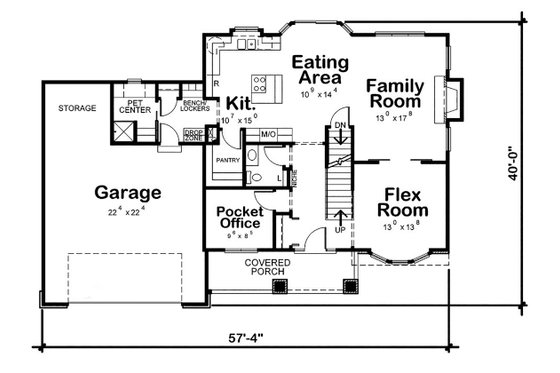

  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

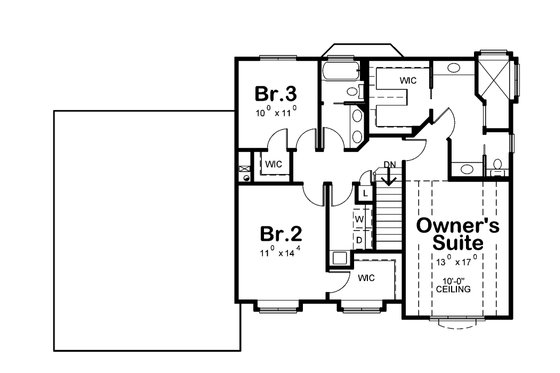

  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$804.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1408.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$528.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$156.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$156.00
Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement

$156.00
Ideal for a sloping lot, lower level with outdoor access.

Wood 2x6

$156.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$156.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$80.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License

$400.00
Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
