Plan 117-136

Photographs may show modified designs.
Plan 117-136

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Lower Floor

Reverse

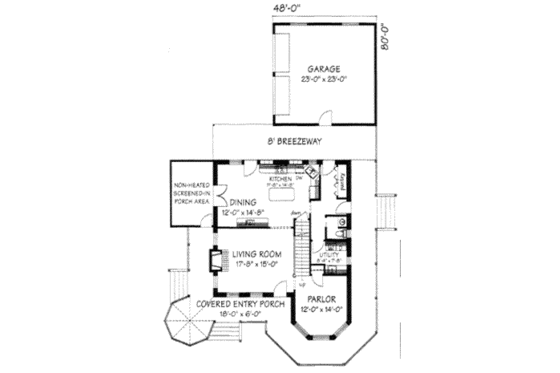

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

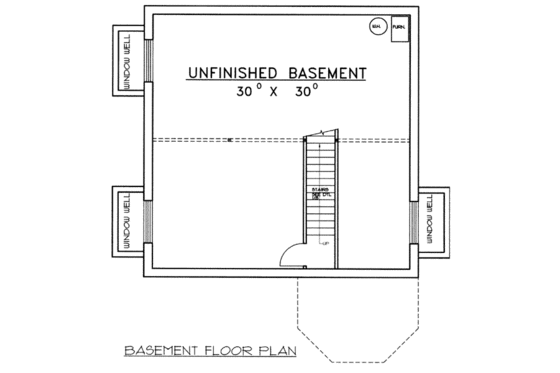

Floor Plan - Lower Floor

Reverse

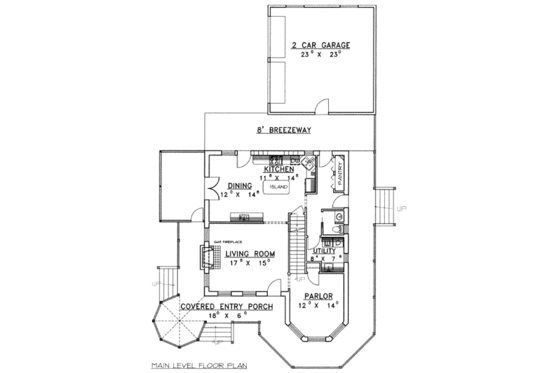

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 74'
Height : 34' 6"
Width : 38'

Area

Total : 2312 sq/ft
Basement Unfinished: 900 sq/ft
First Floor: 1148 sq/ft
Second Floor: 1164 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : ICF

Bedroom Features

Upstairs Master Bedrooms

Kitchen Features

Kitchen Island

Additional Room Features

Master Sitting Area
Sunroom

Garage Features

Detached Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Breezeway
Screened Porch
Wrap Around Porch

Rooms

Basement Foundation:

900 sq/ft width 30' x depth 30'

Bedroom 2:

154 sq/ft width 12' 6" x depth 12' 4"

Bedroom 3:

125 sq/ft width 12' 6" x depth 10'

Covered Porch:

108 sq/ft width 18' x depth 6'

Dining Room:

176 sq/ft width 12' x depth 14' 8"

Garage:

529 sq/ft width 23' x depth 23'

Kitchen:

171 sq/ft width 11' 8" x depth 14' 8"

Living Room:

265 sq/ft width 17' 8" x depth 15'

Master Suite:

265 sq/ft width 15' x depth 17' 8"

Parlor:

168 sq/ft width 12' x depth 14'

Sitting Area:

132 sq/ft width 12' x depth 11'

Utility Room:

63 sq/ft width 8' 4" x depth 7' 8"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

Reproducible Set

$880.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$960.00
5 printed plan sets mailed to you.

CAD Set

$1040.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$1040.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$80.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
