Plan 124-1094

Photographs may show modified designs.
Plan 124-1094

Plan Description


With it's wrap around covered porch, understated entrance and charming stone accents the New Haven home plan is a great vacation home or year round residence. The main level is richly windowed allowing plenty of natural light in along with any stunning lake, mountain, river or city view your lot may have. On the right side is one of the suites with a walk-in closet and full bathroom. The second floor has a bedroom loft that is open to the great room below and has it's own walk-in closet and full bathroom. The walk-out basement is currently unfinished and ready to add to your home whatever else would make this vacation home the perfect retreat be it a recreation room, hobby space or an extra bedroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

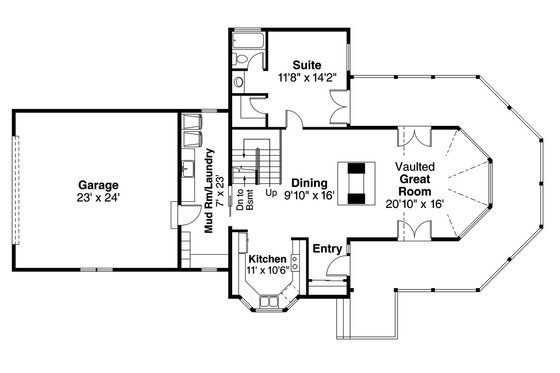

Floor Plan - Main Floor Plan

Reverse

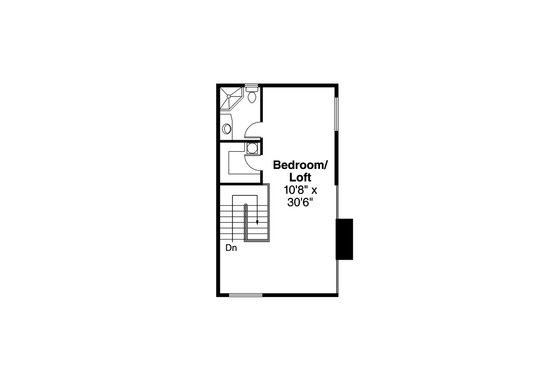

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 2
Garages: 2

Dimension

Depth : 42'
Height : 24' 1"
Width : 78' 6"

Area

Total : 2338 sq/ft
Garage : 588 sq/ft
Main Floor : 1750 sq/ft
Upper Floor : 504 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 6/12
Roof Framing : Truss/Stick
Roof Load : 25

Exterior Wall Framing

Exterior Wall Finish : siding/stone
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch
Wrap Around Porch

More

Suited For Vacation Home

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

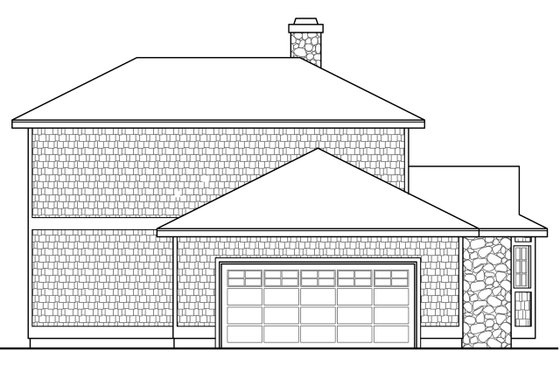

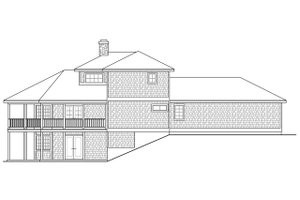

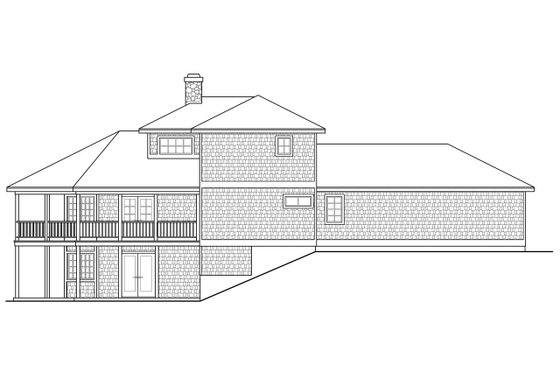

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing


Plan Options

PDF Print Set

$915.00
A non-modifiable, print only PDF file

5 Copy Set

$1020.00
5 printed plan sets mailed to you.

8 Copy Set

$1070.00
8 printed plan sets mailed to you.

PDF Master Set

$1890.00
An unlocked, modifiable PDF file

CAD Set

$2025.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$700.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
