Plan #17-3391

Key Specs


  • 2470 sq/ft

  • 4 Bedrooms

  • 2.5 Baths

  • 1 Floor

  • 3 Garage

Plan Description

With seating for ten people at its huge island, the kitchen will become the undisputed hangout inside this rugged Craftsman design. A large pantry and separate wet bar add even more utility. Just a few steps away, the great room features a cozy fireplace for ambiance, while the grilling porch lets you take the party outside. Owners can kick back in the impressive master suite, where the spacious bedroom leads to a luxurious bathroom and large walk-in closet. The laundry room sits conveniently nearby. Three more bedrooms house family and visitors across the home. Upstairs, the bonus area can be finished now or in the future.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

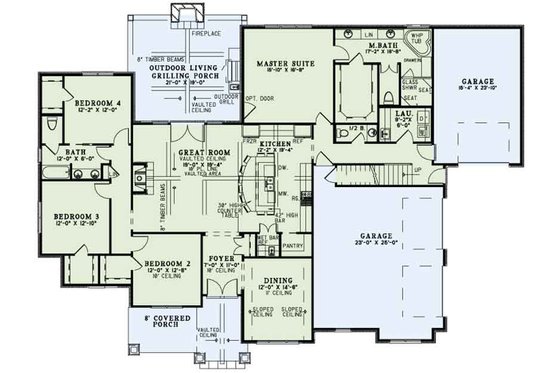

Floor Plan - Main Floor Plan
Craftsman Style House Plan - 4 Beds 2.50 Baths 2470 Sq/Ft Plan #17-3391 Floor Plan - Main Floor Plan

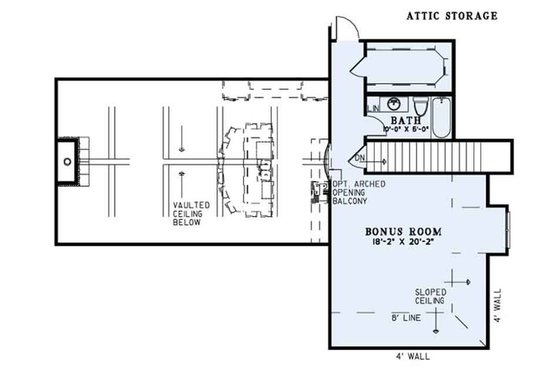

Floor Plan - Upper Floor Plan
Craftsman Style House Plan - 4 Beds 2.50 Baths 2470 Sq/Ft Plan #17-3391 Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 2.5
Stories : 1
Garages : 3

Dimension

Width : 85' 6"
Depth : 61' 3"
Height : 33'

Area

Total : 2470 sq/ft
Bonus : 602 sq/ft
Garage : 1069 sq/ft
Main Floor : 2470 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional
Roof Type : Shingle
Primary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4

Bedroom Features

Split Bedrooms
Main Floor Master Bedroom
Formal Dining Room
Walk In Closet
Fireplace

Kitchen Features

Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Unfinished Future Space
Main Floor Laundry
Great Room Living Room
Open Floor Plan
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage
Front Entry Garage

Outdoor Spaces

Outdoor Fireplace
Grill Deck Sundeck
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

What's included in this plan set

See a sample plan set

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $880.00 5 printed plan sets mailed to you.
8 Copy Set $1095.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1685.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1685.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $2595.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $730.00 One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Basement $250.00 Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement $250.00 Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

What's included?
Instant Download After Checkout

Subtotal $880.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350
