This L-shaped ranch house includes covered porches on several sides for seamless connections between indoors and out. There is a spacious office at the corner of the L that can double as a guest room. It's adjacent to the powder room. The great room and the master bedroom open to porches on two sides. A multi-tasking, two-tiered island separates the kitchen from the rest of the great room and the fireplace is centered on a floating hearth for seating and display. A walk-in pantry is adjacent to the kitchen; the laundry is in the bedroom wing.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

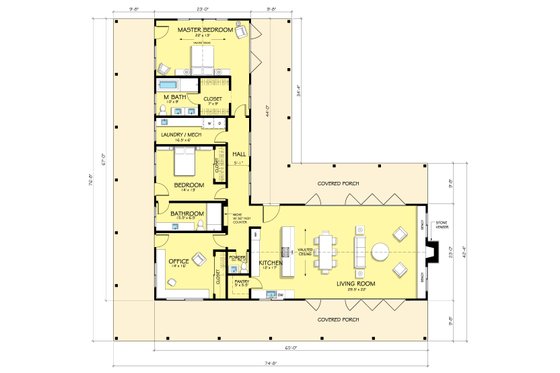

Floor Plan - Main Floor
Full Specs & Features
Main Floor : 2507 sq/ft
Porch : 2107 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6
Roof Framing : Truss
Roof Type : Asphalt Shingle
Secondary Pitch : 4
Exterior Wall Framing
Exterior Wall Finish : Board and Batten Siding
Framing : 2x6
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
