The design of this 3 bedroom 2.5 bath Farmhouse style floor plan is reminiscent of a dairy barn and employs traditional elements interpreted in a modern way. Details such as the board-and-batten siding and a recessed, sheltered entry, add charm and utility. A generous veranda/lanai wraps around the great room to allow for easy indoor-outdoor living.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

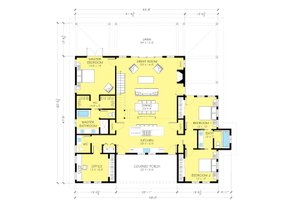

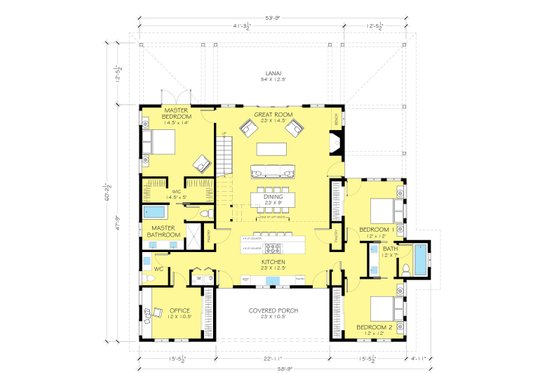

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 60' 3"
Height : 32'
First Floor: 2168 sq/ft height 10'
Second Floor: 552 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Board and Batten
Framing : 2x6
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
COVER PAGE: Cover Sheet: Showing architectural rendering of residence
FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
TYPICAL WALL SECTION & DETAILS
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
