The attractive Craftsman exterior of this Northwest home plan will draw you in to see the exciting floor plan. An 11' vaulted ceiling tops the foyer that has clear sightlines into the great room with its ceiling that soars to 15'6" angling in several directions. A row of clerestory windows allow even more natural light to flood the room. From the great room you can see right into the large 14' by 13' wkitchen with its huge island, and on into the dining room. Outside the dining room is a covered seating area accessed from a door in the dining area. A split bedroom layout affords privacy to the master suite that also has a vaulted ceiling. Two family bedrooms on the opposite side of the home share a hall bathroom with two sinks and pocket doors. Bonus space on the second floor includes an optional additional bathroom
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

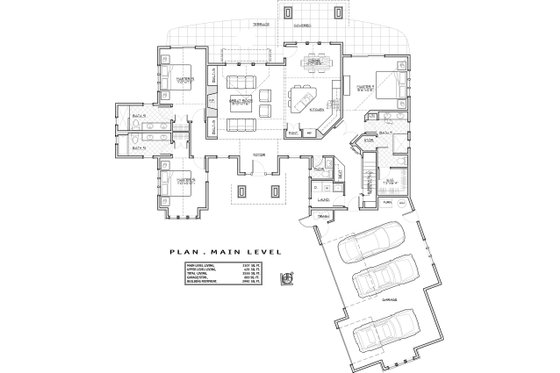

Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.
Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
