Plan 930-530

Photographs may show modified designs.
Plan 930-530

Key Specs


Plan Sq Ft

2543
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description

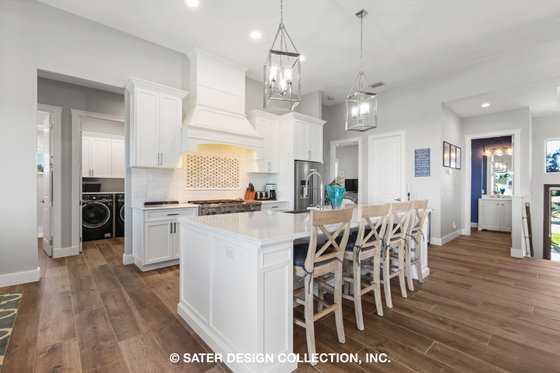

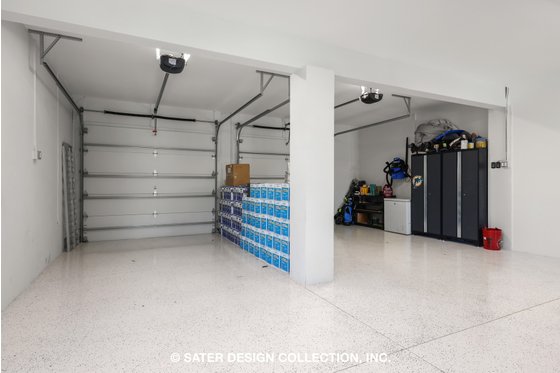

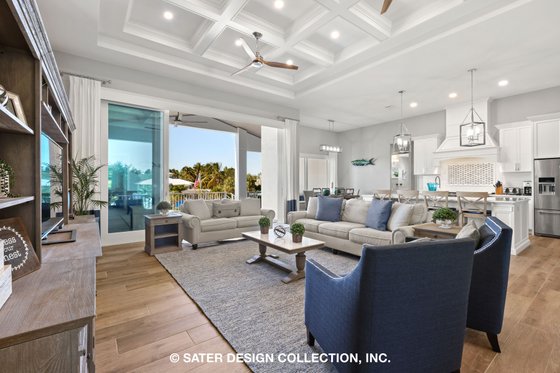

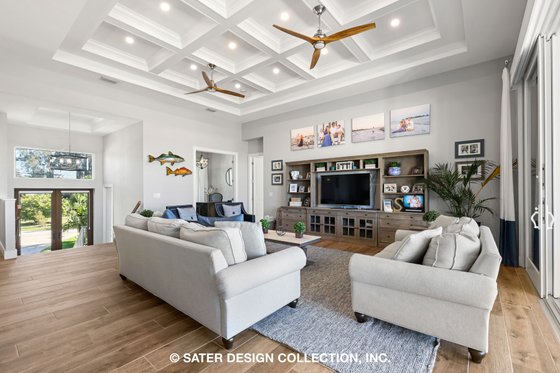

Putting the label of “Beach House“ on this design is very limiting. However, there isn’t a short way of saying, "this design will be at home on the beach, lake side, in the mountains, or even out in the desert." It has all the features you are looking for, including having a drive-under garage which maximizes the space taken up on your lot. The open floor plan is centered around the great room with its coffered ceiling. The large kitchen island is the perfect place for quick meals or just gathering in small groups and having a snack. Everyone will enjoy the large walk-in pantry located right off the kitchen. And with the dining area next to the kitchen everyone will feel included in the festivities, even the chef. The laundry room is strategically located between two of the three guest suites. While two of the guest suites share a bathroom, the third one gets its own private bath, making this design ideal for a multi-generational home. Every home should have a home office, as this plan does. More and more people are working from home and this trend will continue far into the future. While any room could be converted into an office, it is always best to have this space designed specifically for this purpose from the start. The large master suite features a bedroom that has access to the expansive rear deck. There are very generous double walk-in closets and a very luxurious master bath. The large soaking tub is where you will want to unwind every night. But the walk-in shower is a perfect substitute if you don’t have the time for a long soak. The lower level really makes this design unique. Not only do you get a 2-car garage, but you get an incredible amount of storage. In coastal locations most homes are required to be elevated. However, if you build this home inland, you are free to convert this space into living areas, which is ideal for an area where you do not have the land for a detached garage or shop. You will have all the room you need under your house for almost anything you want to do. This house plan is an ideal Beach House but it is so much more.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

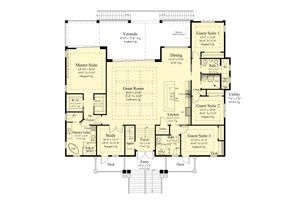

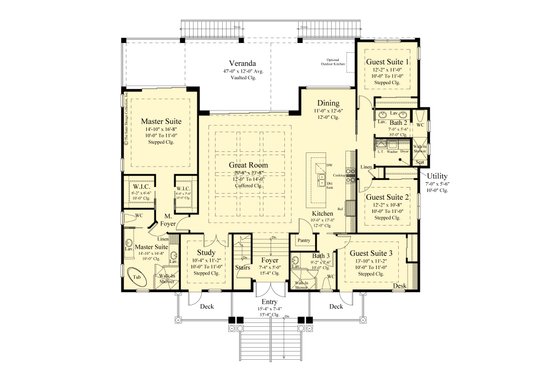

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

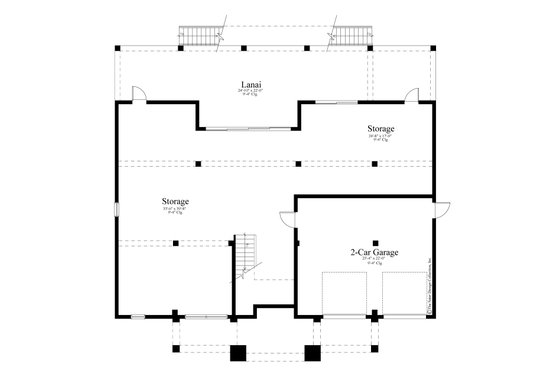

Floor Plan - Lower Floor

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 59' 4"
Height : 41'
Width : 60' 4"

Area

Total : 2543 sq/ft
Decks : 241 sq/ft
Garage : 622 sq/ft
Lower Floor : 1643 sq/ft
Main Floor : 2543 sq/ft
Patios : 560 sq/ft
Porch : 696 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Main ceiling height varies.
Lower Ceiling : 9' 4"

Roof

Primary Pitch : 6/12
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block (Both Levels)

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

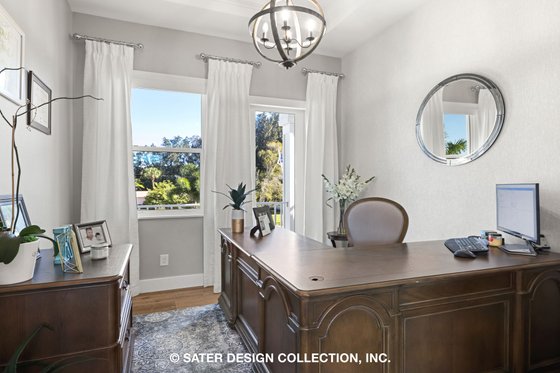

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Workshop

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Suited For Vacation Home

What's included in this plan set


See a sample plan set

This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1348.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2289.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Island Basement

$0.00
Foundation raised on piles or piers so that the main part of the house remains above floodwaters; typically required by FEMA, insurance companies, and county codes in shoreline areas.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Block

$0.00
Block

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Additional Construction Sets

$65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
