Plan Description


This floor plan is 259 sq ft and has 0 bedrooms and 0 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

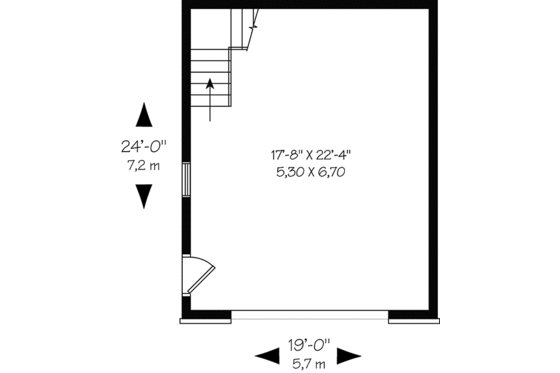

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

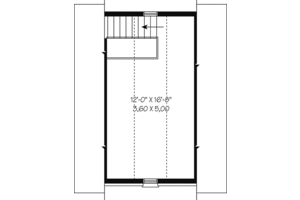

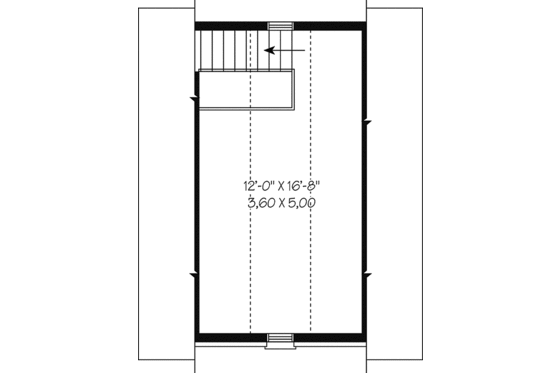

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 0
Stories: 2
Garages: 1

Dimension

Depth : 24'
Height : 20'
Width : 19'

Area

Total : 259 sq/ft
Garage: 456 sq/ft
Second Floor: 259 sq/ft height 6' 8"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6

Additional Room Features

Loft

Garage Features

Detached Garage

Outdoor Spaces

Balcony

Rooms

Garage:

394 sq/ft width 17' 8" x depth 22' 4"

Loft:

200 sq/ft width 12' x depth 16' 8"

What's included in this plan set


See a sample plan set
