Plan 17-1042

Photographs may show modified designs.
Plan 17-1042

Key Specs


2606
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


This stately home plan will be the talk of the neighborhood. The column lined foyer and dining room view an open great room with French door access to the rear grilling porch. This split bedroom floor plan allows two bedrooms both accessing a full bath off the hearth room- perfect for weekend guests. The kitchen/breakfast room can seat many and kids can enjoy the upstairs bonus area. A master suite full to the brim with amenities awaits the head of the house after working in the study on that special project. The column lined foyer and dining room view an open great room with French door access to the rear grilling porch. This split bedroom floor plan allows two bedrooms both accessing a full bath off the hearth room- perfect for weekend guests. The kitchen/breakfast room can seat many and kids can enjoy the upstairs bonus area. A master suite full to the brim with amenities awaits the head of the house after working in the study on that special project. Pantry dimensions-3'4" x 3'6" Main ceilings 9 ft-Upper Bonus 8ft Foyer with 12 ft ceiling-Open floor plan 8 inch columns set off Dining room with 12 ft ceiling Great room with 12 ft ceiling, corner fireplace. and French doors to rear grilling porch French doors to bedroom 4/Study with access to side Patio Master suite with 10 ft boxed ceiling and access to rear grilling porch Master bath with h/h walk-in. Closets, corner whirlpool tub, corner glass shower Kitchen with bar open to Hearth room with fireplace. and access to grilling porch Bedrooms 2 and 3 share bath access Upper: Proposed bonus area 751 ft. 2x6 Roof Framing
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

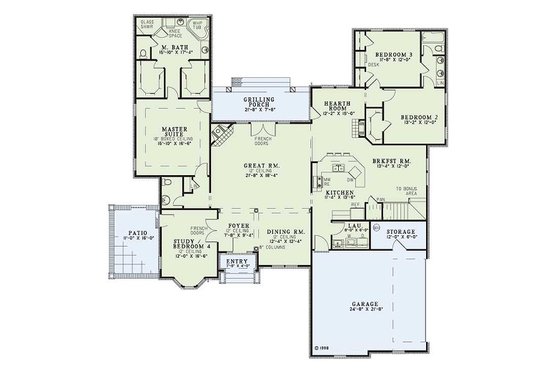

Floor Plan - Main Floor Plan

Reverse

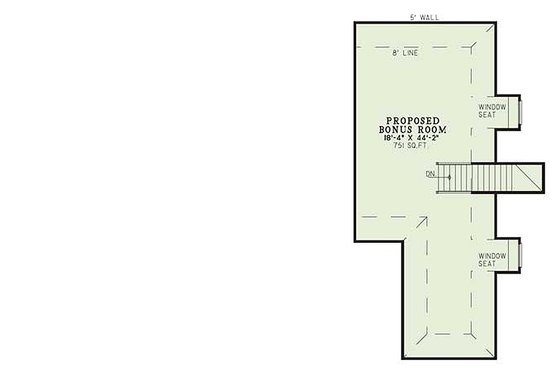

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 74'
Height : 31'
Width : 68'

Area

Total : 2606 sq/ft
Garage : 534 sq/ft
Main Floor : 2606 sq/ft
Porch : 311 sq/ft
Upper Floor : 751 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

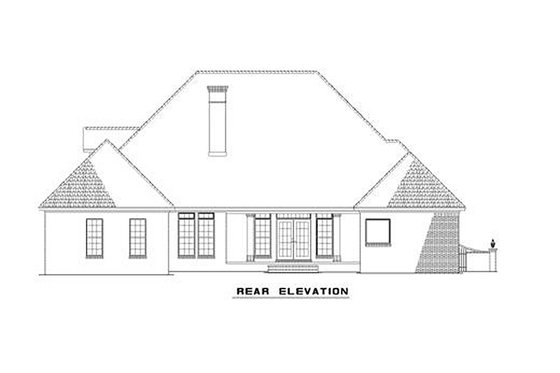

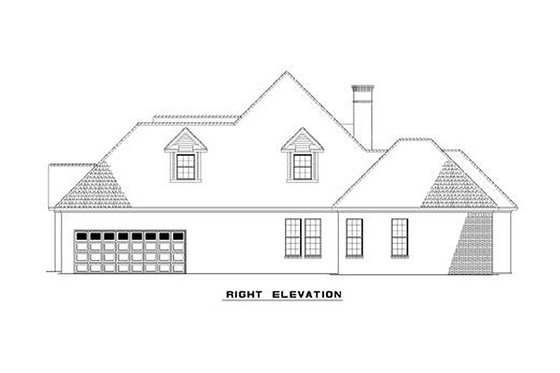

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$850.00
5 printed plan sets mailed to you.

CAD Set

$1545.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$250.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$250.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
