Plan Description


This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

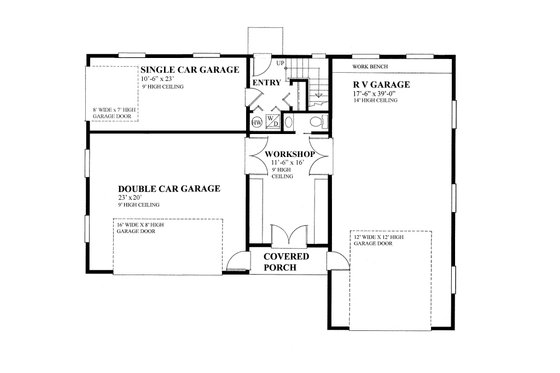

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Houseplans.com
PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

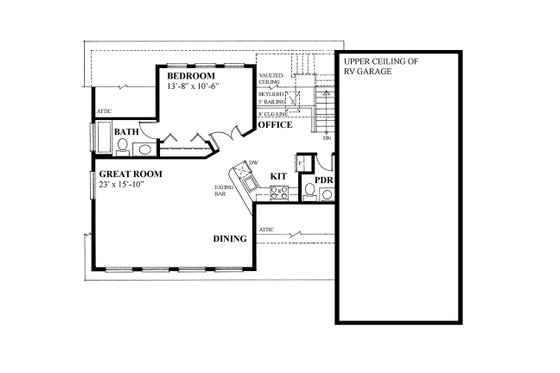

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 2
Stories: 2
Garages: 3

Dimension

Depth : 40'
Height : 25' 3"
Width : 54'

Area

Total : 2637 sq/ft
First Floor: 106 sq/ft
Garage: 1508 sq/ft
Porch: 46 sq/ft
Second Floor: 807 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 14'
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12
Roof Framing : Roof joists and trusses
Roof Type : Metal
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Horiz. Siding
Framing : 2"x6"

Bedroom Features

Upstairs Bedrooms

Additional Room Features

Den Office Study Computer
Great Room Living Room
Workshop

Garage Features

Oversized Garage
RV Garage

Outdoor Spaces

Covered Front Porch

Rooms

Garage:

504 sq/ft width 23' x depth 20'

Garage 2:

264 sq/ft width 10' 6" x depth 23'

Great Room:

width 23' x depth 15' 10"

Master Bedroom:

width 13' 8" x depth 10' 6"

RV Garage:

740 sq/ft width 17' 6" x depth 39'

Work Shop:

216 sq/ft width 11' 6" x depth 16'
