Plan 17-2414

Photographs may show modified designs.
Plan 17-2414

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2
Stories: 2
Garages: 2

Dimension

Depth : 73' 4"
Height : 28' 5"
Width : 58' 6"

Area

Total : 2652 sq/ft
Bonus: 546 sq/ft height 8'
First Floor: 2001 sq/ft height 9'
Garage: 586 sq/ft
Porch: 367 sq/ft
Second Floor: 651 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 45
Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2"x4"
Insulation : R13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Rooms

Bedroom 2:

130 sq/ft width 11' 6" x depth 11' 4"

Bedroom 3:

177 sq/ft width 14' 10" x depth 12'

Bedroom 4:

253 sq/ft width 12' 8" x depth 20'

Bonus Room - Unfinished:

431 sq/ft width 10' 10" x depth 39' 10"

Breakfast Room:

158 sq/ft width 15' 10" x depth 10'

Covered Porch:

160 sq/ft width 20' x depth 8'

Dining Room:

140 sq/ft width 11' 8" x depth 12'

Foyer:

61 sq/ft width 7' 8" x depth 8'

Garage:

528 sq/ft width 22' 6" x depth 23' 6"

Great Room:

408 sq/ft width 22' 8" x depth 18'

Grilling Porch:

184 sq/ft width 23' x depth 8'

Kitchen:

196 sq/ft width 15' 10" x depth 12' 5"

Master Suite:

280 sq/ft width 18' 8" x depth 15'

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

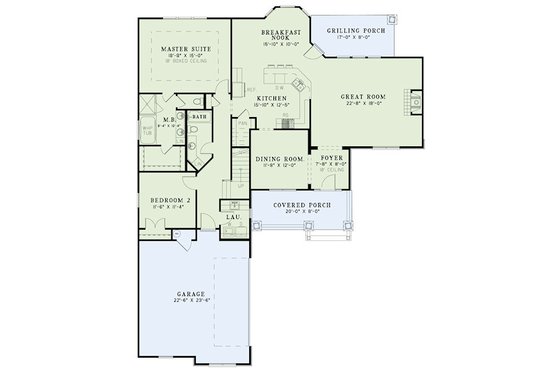

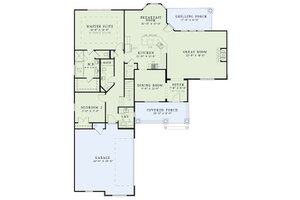

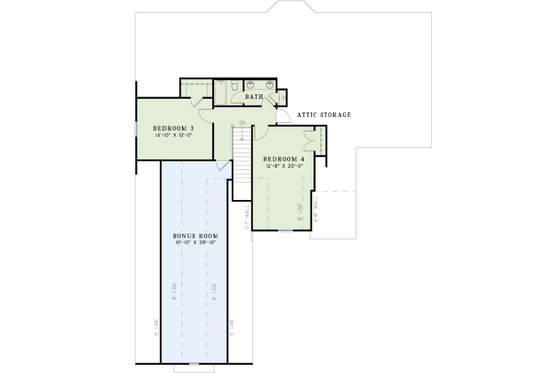

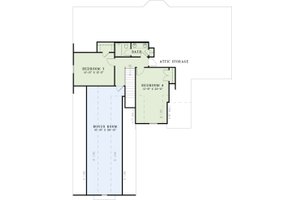

  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$990.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1080.00
5 printed plan sets mailed to you.

5 Copy and PDF Set

$1305.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1980.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$269.10
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$269.10
Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$269.10
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$179.10
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$90.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
