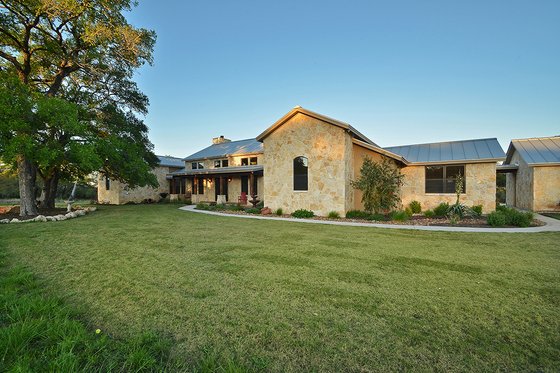

Photographs may show modified designs.
Plan 140-149

Key Specs


2693
sq ft

3
Beds

2.5
Baths

1
Floors

0
Garages

Plan Description


It's all about sweeping views with this ranch plan. The central part of the home celebrates a beautiful vista with windows and porch access. Actually, just about every room steps out to the porch, so you can get outside and be inspired by the sunset.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

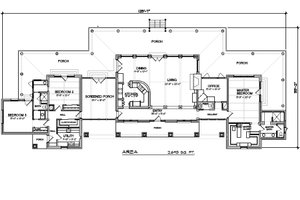

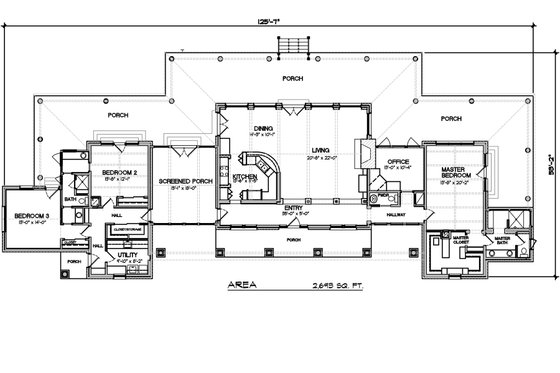

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 0

Dimension

Depth : 54'
Height : 26'
Width : 126'

Area

Total : 2693 sq/ft
Bonus : 299 sq/ft
Main Floor : 2693 sq/ft
Porch : 2424 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : trussed
Secondary Pitch : 2:12

Exterior Wall Framing

Exterior Wall Finish : stone
Framing : 2"X6"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Mud Room
Sunroom

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

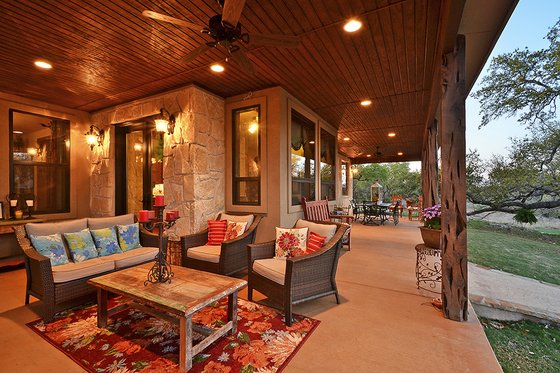

Covered Front Porch
Covered Rear Porch
Screened Porch
Wrap Around Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

  • Cover page
  • Elevations set to 1/4" scale
  • Dimensioned Floor plans set to 1/4" scale
  • Roof plan: Overhead plan shows peaks, valleys and roof pitch
  • Building Sections Interior Elevations: Cabinet and millwork details.
  • Electrical floor plan layout
  • Foundation plan
  • General notes and details.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$675.00
5 printed plan sets mailed to you.

8 Copy Set

$775.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$775.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$775.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$550.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
