Plan 63-349

Photographs may show modified designs.
Plan 63-349

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

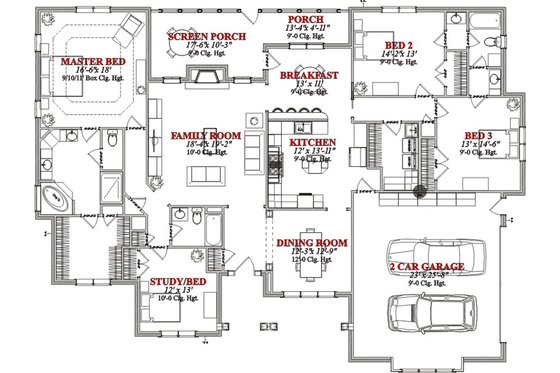

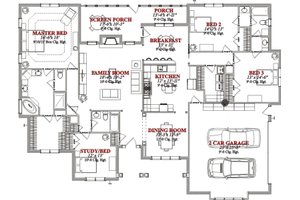

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 57'
Height : 32'
Width : 76'

Area

Total : 2726 sq/ft
Garage : 652 sq/ft
Main Floor : 2726 sq/ft
Porch : 366 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 30

Exterior Wall Framing

Framing : 2"x4"
Icf

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

Code Compliance

Irc 2006

What's included in this plan set


See a sample plan set
  • Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
  • * Foundation: Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations: Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
  • Floor joist: Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist: Complete with spans, sizes and direction
  • Sections: Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
* Alternate foundations are available. Please call 1-800-913-2350 for pricing and turnaround time
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1367.52
5 printed plan sets mailed to you.

8 Copy Set

$1422.52
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1472.02
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1516.02
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1648.02
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1345.52
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$635.25
A list of building supplies needed to construct the infrastructure of your new house.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
