Plan Description


With castle like details, this European style home is packed with charm. Friends and family will love the Guest Room and the curved wall of windows. The massive Great Room is open to the kitchen and Dining Room and has a fireplace and access to the rear Grilling Porch with fireplace. The Master Suite features a 10’ boxed ceiling and access to the Grilling Porch. The master bath offers a whirlpool tub, separate shower, double vanity, and a walk-in closet. Upstairs has 2 additional bedrooms, 1 of which has the curved wall of windows over the guest room. A balcony with a sitting area overlooks the Great Room while the loft/study has a computer center. Finally, a large Bonus Room is located over the garage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 72' 2"
Height : 30'
Width : 44'

Area

Total : 2744 sq/ft
Bonus : 319 sq/ft
Garage : 559 sq/ft
Main Floor : 1759 sq/ft
Porch : 320 sq/ft
Upper Floor : 985 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Roof Framing : Stick
Roof Type : Shingle

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Additional Room Features

Den Office Study Computer
Great Room Living Room
Play Flex Room

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

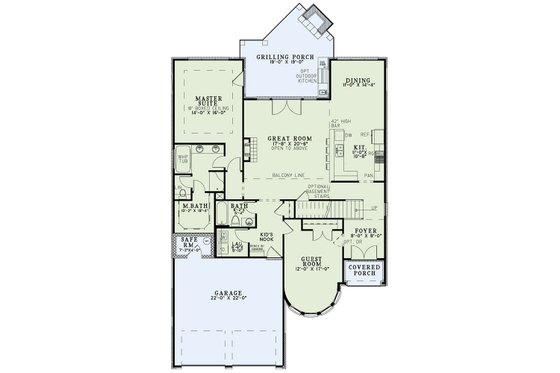

  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing
