This home features a formal dining room and foyer that rise 14 feet,
making a dynamic first impression. Both the breakfast and gathering
rooms are bayed, and a fireplace and vaulted ceiling are features of the
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

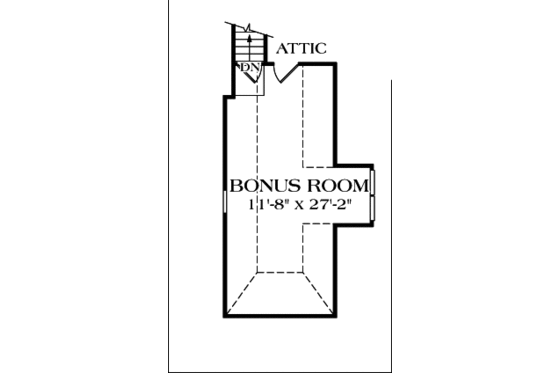

Floor Plan - Other Floor

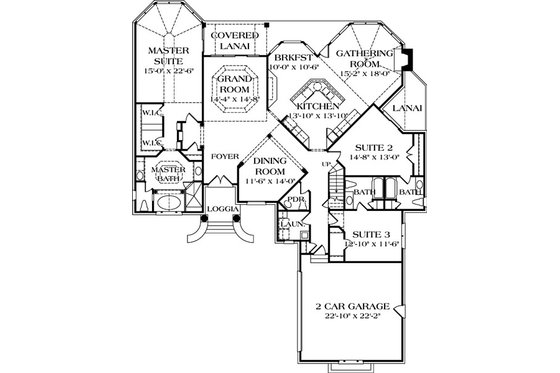

Floor Plan - Main Floor
Full Specs & Features
Depth : 84' 9"
Height : 29'
Bonus: 367 sq/ft
First Floor: 2774 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 8'
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Side Entry Garage
Suited For Corner Lot
Suited For Sloping Lot
Covered Front Porch
Covered Rear Porch
Suited For Vacation Home
