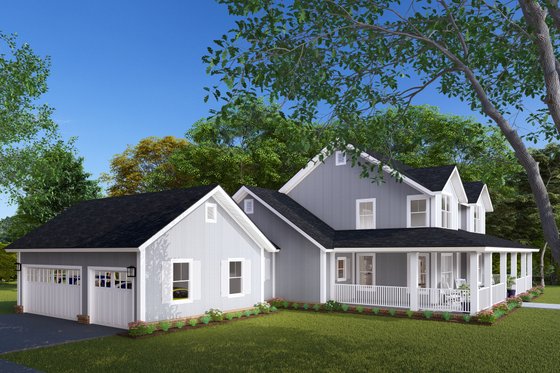

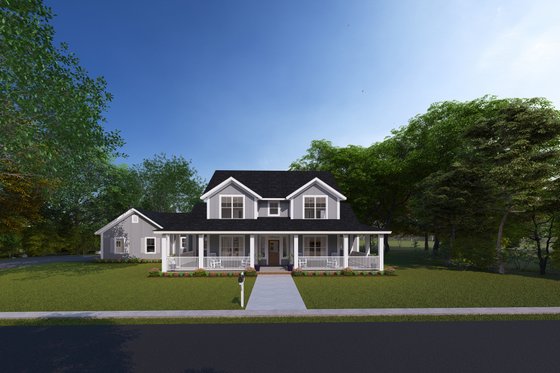

Plan 513-2172

Photographs may show modified designs.
Plan 513-2172

Key Specs


2796
sq ft

3
Beds

4
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

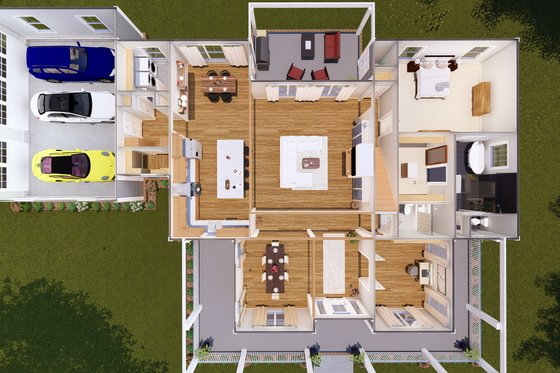

Floor Plan - Main Floor Plan

Reverse

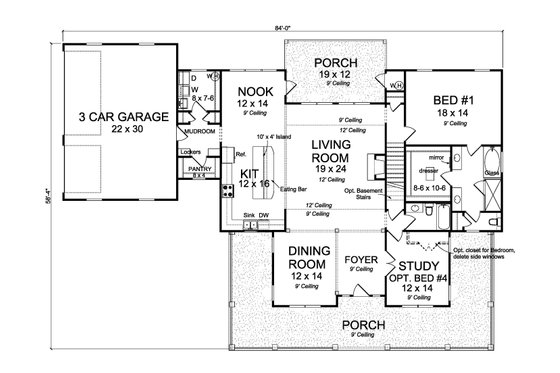

Farmhouse Floor Plan - Main Floor Plan Plan #513-2172

Floor Plan - Upper Floor Plan

Reverse

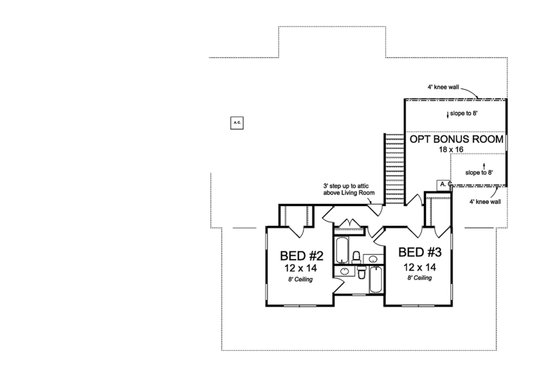

Farmhouse Floor Plan - Upper Floor Plan Plan #513-2172

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 4
Stories: 2
Garages: 2

Dimension

Depth : 59'
Height : 29'
Width : 84'

Area

Total : 2796 sq/ft
Garage : 660 sq/ft
Main Floor : 2176 sq/ft
Porch : 893 sq/ft
Upper Floor : 620 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 12' Living Room ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 8:12

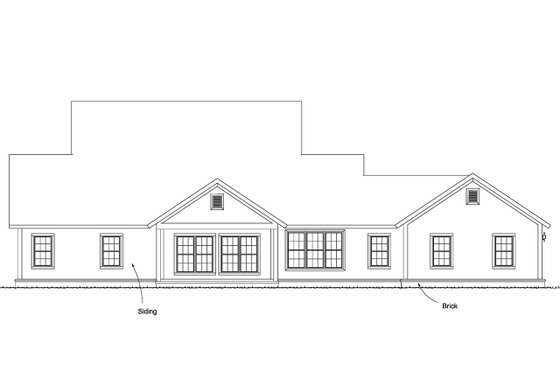

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

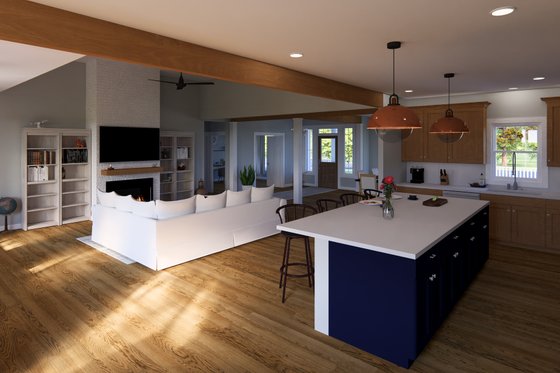

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

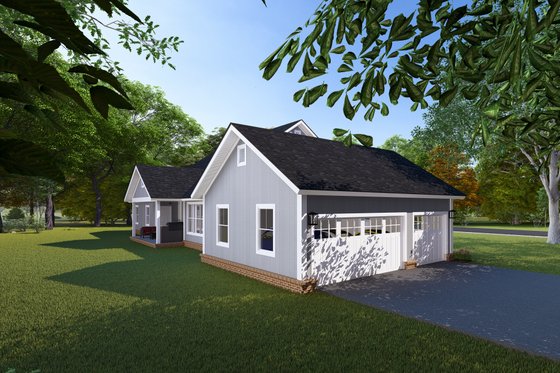

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

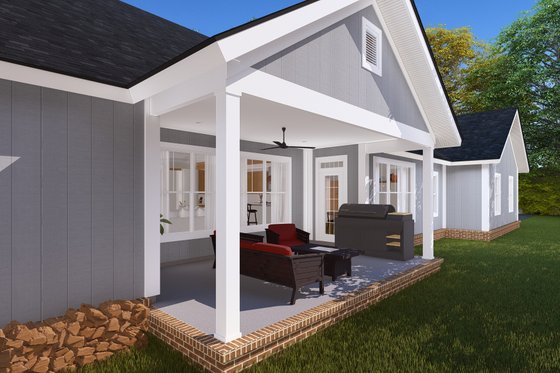

Covered Rear Porch

What's included in this plan set


See a sample plan set
  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$985.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1210.00
5 printed plan sets mailed to you.

CAD Set

$1235.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

8 Copy Set

$1285.00
8 printed plan sets mailed to you.

Single Set

$1085.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$150.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$150.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$150.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
