This West Indies style house plan offers 3 bedrooms, 3 baths, a formal study and tall vaulted ceilings. The great room has a wet bar that make it perfect for entertaining guests on a waterfront lot. With 20 ft. of pocketing glass doors, you will have a seamless transition to the covered rear lanai and outdoor kitchen. Please note, this design is not available for purchase for construction in Collier or Lee Counties in Florida. Plan will need to be engineered by local engineering company and truss drawings must be done as well for most locations. This includes all of Florida.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

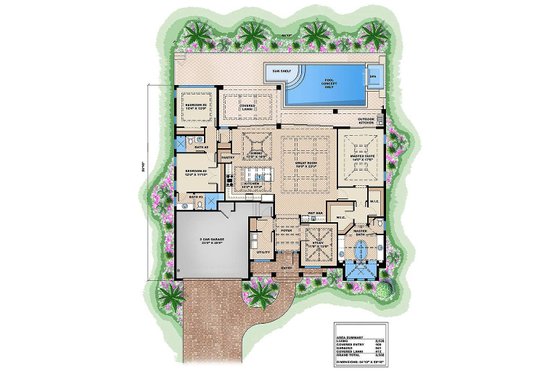

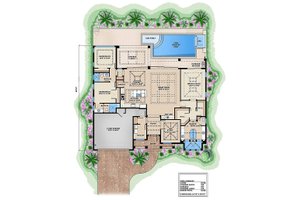

Floor Plan - Main Floor
Full Specs & Features
Depth : 59' 10"
Height : 25' 8"
First Floor: 2526 sq/ft
Garage: 541 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Coffer, Tray, Vault, Flat
Main Ceiling : 10'
Primary Pitch : 6:12
Roof Framing : Manufactured Trusses
Roof Type : Concrete Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : CMU
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Suited For Vacation Home
What's included in this plan set
See a sample plan set
*See important information before purchasing
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
