2802 sq ft
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.
Full Specs & Features
Exterior Wall Framing
Additional Room Features
Structural Information Provided
What's included in this plan setSee a sample plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

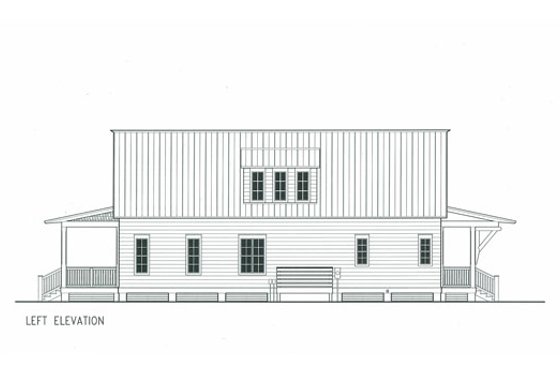

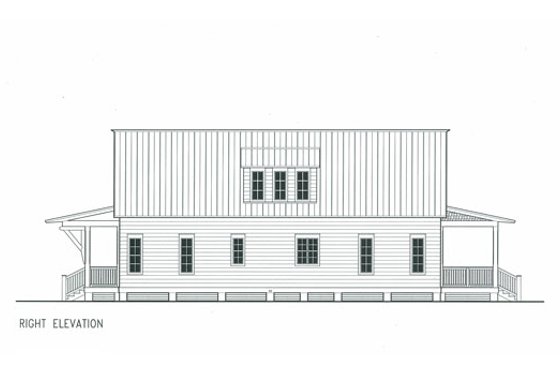

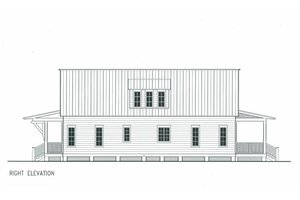

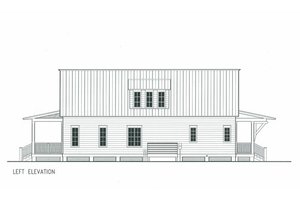

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

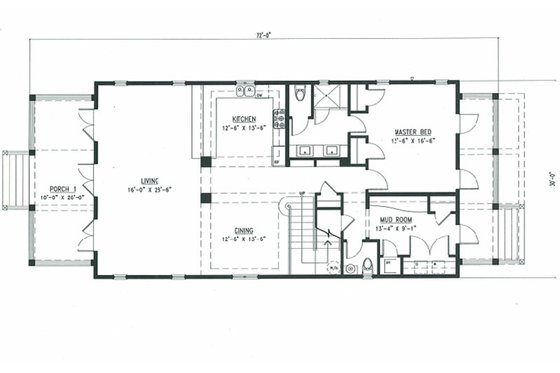

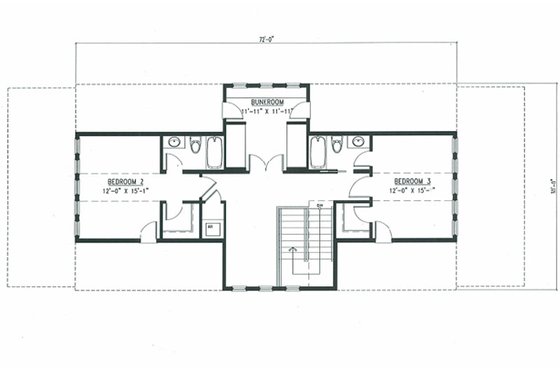

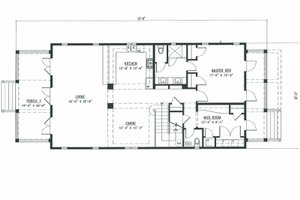

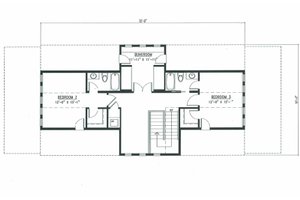

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
|PDF Set Best Value!||$2101.00||PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|CAD Set||$4202.00||For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Pier||$0.00||Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.|
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
Meet the Designer - Gulf Coast Cottages
"My projects seek to find a balance between the honest use of natural materials and modern sensibilities; creating structures which transcend popular fashion, are built to last and worthy of preservation. These homes evoke a collective memory of traditional architecture, relevant in almost any regional context, adapted to the way American families live today."
Inspired by the quality of life along the Gulf Coast, Geoff moved to the Florida Panhandle after earning his professional degree from Cornell University in 1996. A native of Massachusetts, Geoff has spent the ensuing years cultivating his knowledge of the area and its local building traditions.
Frustrated by the generic nature of the builder driven housing industry, he founded Geoff Chick & Associates in 2001. Dedicated to serving the needs of his clients with a more intimate collaboration, Geoff specializes in building single-family custom homes which are unique to the site and their occupants.
With extensive field construction experience and a substantial portfolio of built work, Geoff continues to create homes which manifest his profound sense of scale and the honest use of materials. His solutions are both pragmatic and poetic, merging established vernacular forms with a modern aesthetic.
Geoff is a registered architect in the State of Florida, is certified by the National Council of Architectural Registration Boards, and a member of the American Institute of Architects. Geoff resides in South Walton County with his wife, Shawn and their two children.
