Plan 23-2753

Photographs may show modified designs.
Plan 23-2753

Key Specs


Plan Sq Ft

2886
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

0
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

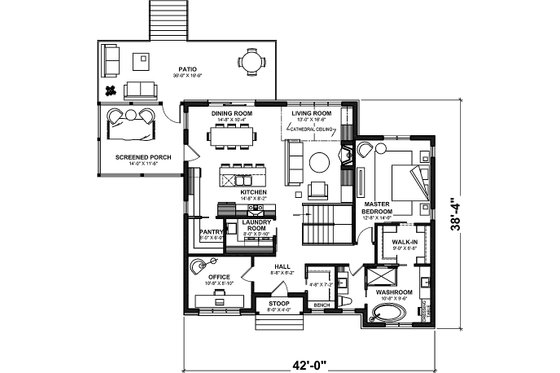

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 1
Garages: 0

Dimension

Depth : 38' 4"
Height : 24' 4"
Width : 42'

Area

Total : 2886 sq/ft
Lower Floor : 1443 sq/ft
Main Floor : 1443 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : cathedral ceiling in living room
Lower Ceiling : 8' 2"
Main Ceiling : 9' 2"

Roof

Primary Pitch : 10:12
Roof Type : truss
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : wood
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Storage Area

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Screened Porch

More

Economical To Build
Empty Nester

What's included in this plan set


See a sample plan set


    Exterior Elevations (front, rear, left & right sides) typically include:
    • Floor and ceiling heights
    • Dimensions of standard windows
    • Dimensions of roof overhangs
    • Location of all needed flashings (mention of “typical” in most cases)
    • Height and location of foundation indicated in dashed lines
    • Type of finishing and textures (we write siding, horizontal or vertical but not the company)
    • Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
    Foundation plans typically include:
    • All exterior and interior dimensions
    • Thickness of foundation walls (if variable)
    • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
    • Location of stairwell
    • Location and sizes of windows
    • Location and dimensions of footings (where applicable and required)
    Floor plan(s) typically include:
    • All interior and exterior dimensions (included but not as a schedule)
    • Location and sizes of doors and windows
    • Indication of the structure above (second floor or roof)
    • Indication of details that are available on other pages
    Roof plans typically include:
    • Location of all the different trusses needed
    • The general overcharge of the roof compared to the floor footprint underneath
    Building cross-section(s) and truss details typically include:
    • All the different floor and ceiling heights
    • Dimensions and design of trusses
    • Dimensions and details of overhand
    • Roof pitch on all truss sections
    Construction details typically include:
    • Roof sections
    • Sections of concrete wall with wood connection
    • Section of walls with particulars called out
    • Section of concrete porch and connection with wood frame
    • Foundation particulars in the garage entrance
    • Components of certain types of walls (ex: between garage and living quarters)
    Typical wall sections typically include;
    • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
    • Note: This plan does not include HVAC, electrical and plumbing.
