This craftsman-style plan greets you with a covered entry that is supported by square tapered columns resting on a stone water table. The relaxed and warm feeling continues with mixed siding and prairie-style windows. Upscale touches have been designed into this compact floor plan, such as 10-foot ceilings, private hallways, plenty of closet space and a convenient powder bath. Near the garage access is a handy Mud Room bench for kicking off your boots. The Powder Room, Closet and Utility Room are the perfect nexus for organizing your comings and goings. This open concept plan is quickly revealed upon walking thru the front foyer. The Great Room, Kitchen and Dining combination is seamless. Providing easy living and dining access. The rear glass sliding doors open to a generous covered lanai, perfect for al fresco entertaining. A cozy fireplace is centered on the great room wall, and completes the ambiance of a true craftsman home. The Kitchen provides an eat-at-island and convenient access to the Dining Room, walk-in pantry and a powder bath. Nearby is the garage door providing a straight shot to the kitchen and pantry for quick unloading of groceries. Access the superb Master Suite thru a private entrance. It’s secluded to the far corner of the home. The master bath provides all of the amenities you could ask for. A private toilet room, soaking tub and walk-in shower with dual vanities. A spacious master closet completes the suite. The Den is positioned at the front of the home, with pocket-sliding doors. The two main Guest Bedrooms are positioned opposite the master with a full bath between them. A short hallway buffers them from the public areas.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

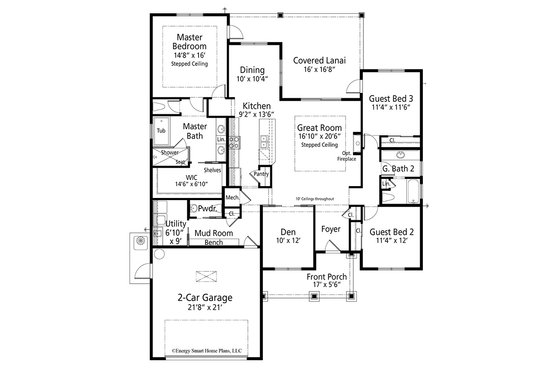

Floor Plan - Main Floor
Full Specs & Features
Depth : 68' 2"
Height : 21' 8"
Garage : 486 sq/ft
Main Floor : 2138 sq/ft
Patios : 321 sq/ft
Porch : 122 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : stepped ceiling
Main Ceiling : 10'
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Zero Lot Lines
Covered Front Porch
Covered Rear Porch
Economical To Build
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
- Cover Sheet
- The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
Second floor framing (where appropriate)
The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
Roof Plan & Soffit (Chase Layout) Plan
The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
Reflected Ceiling Plan
The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
Cross Section & Interior Elevations
The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
