This is a contemporary coastal design with a touch of West Indies style. Clean simple lines with earthy woods create a showpiece that fits well within any neighborhood. Double doors open wide to the spacious foyer with 14-foot ceilings. The great room beyond offers pocketing walls of glass that open the entire living space to the covered lanai. Perfect for al fresco dining and entertaining. A box beamed ceiling adds to the great room drama. The kitchen's large island accommodates casual meals. The owner's suite is secluded to the rear of the home with access to the rear patio. A spacious bath includes a private garden beyond the walk-in shower, and an extra large owner's wardrobe closet with access to the laundry. The outdoor kitchen and dining has direct access to a powder bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
Second floor framing (where appropriate)
The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

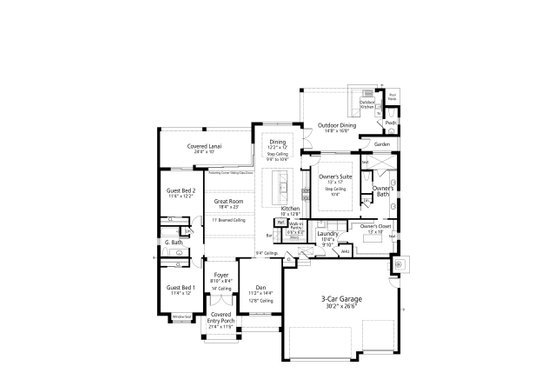

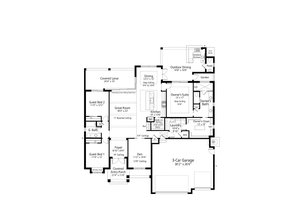

The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
Roof Plan & Soffit (Chase Layout) Plan
The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
Reflected Ceiling Plan
The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

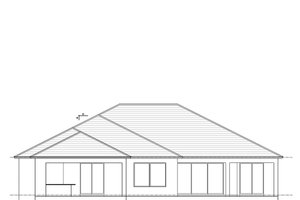

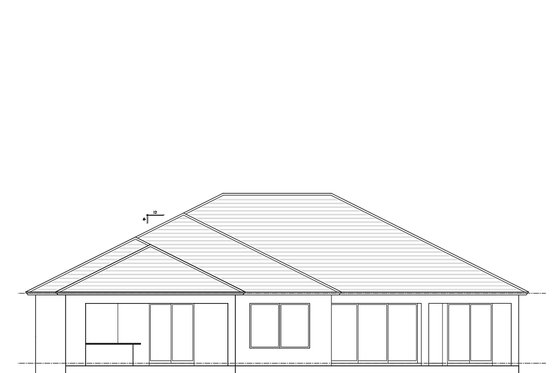

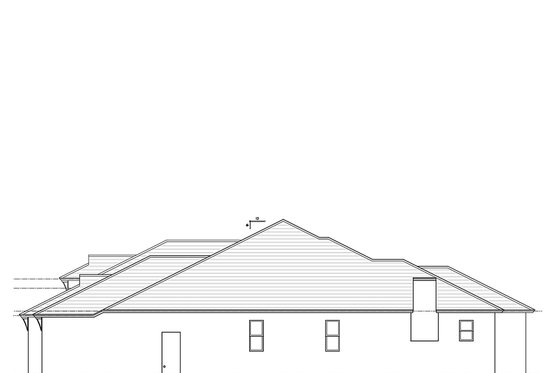

The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
Cross Section & Interior Elevations
The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
