Home > Style > European

European House Plan 23-546 3126 sq ft, 4 bed, 2.5 bath, 2 floor, 2 garage

Key Specs

3126
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description

This european design floor plan is 3126 sq ft and has 4 bedrooms and 2.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

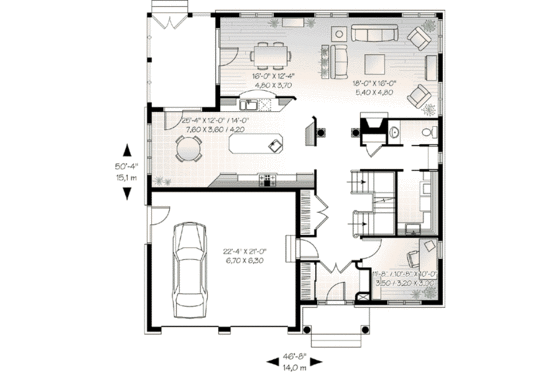

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

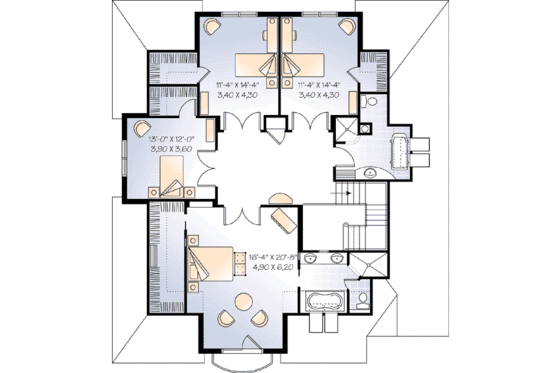

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 2

Garages: 2

Dimension

Depth : 50'

Height : 38' 8"

Width : 46'

Area

Total : 3126 sq/ft

First Floor: 1526 sq/ft height 9'

Garage: 517 sq/ft

Second Floor: 1600 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 16:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : Wood - 2x6

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Storage Area

Sunroom

Lot Characteristics

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Screened Porch

Rooms

Balcony:

26 sq/ft width 8' 8" x depth 3'

Bathroom 2:

133 sq/ft width 10' 10" x depth 12' 4"

Bedroom 2:

156 sq/ft width 13' x depth 12'

Bedroom 2 Closet:

28 sq/ft width 7' x depth 4'

Bedroom 3:

162 sq/ft width 11' 4" x depth 14' 4"

Bedroom 3 Closet:

33 sq/ft width 7' x depth 4' 10"

Bedroom 4:

162 sq/ft width 11' 4" x depth 14' 4"

Bedroom 4 Closet:

22 sq/ft width 4' x depth 5' 8"

Coat Closet:

14 sq/ft width 7' x depth 2'

Dining Room:

197 sq/ft width 16' x depth 12' 4"

Foyer:

37 sq/ft width 6' x depth 6' 2"

Garage:

476 sq/ft width 22' 8" x depth 21'

Half Bathroom:

26 sq/ft width 7' 6" x depth 3' 6"

Hall Closet:

12 sq/ft width 6' 2" x depth 2'

Home Office:

116 sq/ft width 11' 8" x depth 10'

Kitchen:

354 sq/ft width 25' 4" x depth 14'

Linen Closet:

5 sq/ft width 3' 6" x depth 1' 6"

Linen Closet 2:

5 sq/ft width 2' 10" x depth 2'

Living Room:

284 sq/ft width 18' x depth 15' 10"

Master Bathroom:

111 sq/ft width 12' 8" x depth 8' 10"

Master Bedroom:

337 sq/ft width 16' 4" x depth 20' 8"

Master Closet:

80 sq/ft width 5' x depth 16' 2"

Porch - Front:

41 sq/ft width 10' 4" x depth 4'

Porch - Screened:

148 sq/ft width 10' 4" x depth 14' 4"

Utility Room:

60 sq/ft width 6' x depth 10'

What's included in this plan set

See a sample plan set

*Important* This designer may need 5-7 business days to update the plan content when an order is placed. Please call to confirm your order details.

This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.

*** Please note that some plans from this designer may be delayed 5-7 days as they are updating plan content. ***

Pricing

Plan Options

PDF Set

Best Value!

$2035.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Three Copy and PDF Set

$2170.00

3 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$3035.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Floating Slab

$395.00

A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.

Monolithic Slab

$395.00

A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
