Home > Style > Traditional

Traditional House Plan 23-2393 3126 sq ft, 5 bed, 4.5 bath, 2 floor, 2 garage

Key Specs

3126
sq ft

5
Beds

4.5
Baths

2
Floors

2
Garages

Plan Description

This duplex is a good choice for a family with a live-in relative (or even a couple) who wants more independence than the typical guest suite provides. The laundry room joins the two units: on the left, a complete one-bedroom home with a full kitchen, living space, and separate entrance – even a porch. On the right, the larger unit holds four bedrooms (on the upper level) and spacious living areas where the whole family can gather.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

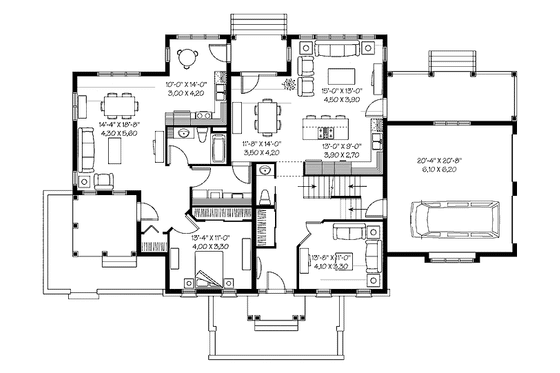

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 4.5

Stories: 2

Garages: 2

Dimension

Depth : 42' 4"

Height : 31'

Width : 72'

Area

Total : 3126 sq/ft

Bonus: 343 sq/ft

First Floor: 947 sq/ft height 9'

First Floor: 870 sq/ft height 9'

Garage: 462 sq/ft

Second Floor: 1309 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Guest Suite

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 1:

146 sq/ft width 13' 4" x depth 11'

Dining Room:

163 sq/ft width 11' 8" x depth 14'

Family Room:

150 sq/ft width 13' 8" x depth 11'

Garage:

420 sq/ft width 20' 4" x depth 20' 8"

Gathering Room:

267 sq/ft width 14' 4" x depth 18' 8"

Kitchen:

163 sq/ft width 11' 8" x depth 14'

Kitchen:

140 sq/ft width 10' x depth 14'

Living Room:

195 sq/ft width 15' x depth 13'

What's included in this plan set

See a sample plan set

*Important* This designer may need 5-7 business days to update the plan content when an order is placed. Please call to confirm your order details.

This plan set typically contains:

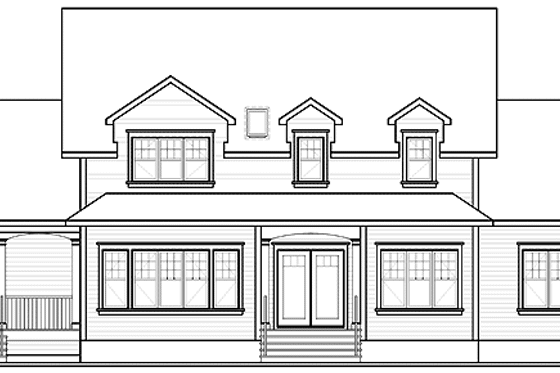

Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.
