Plan 472-17

Photographs may show modified designs.
Plan 472-17

Key Specs


3197
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

Plan Description


The high ceiling Rotunda is the hub of this design which leads either to the semi public and entertainment spaces or to the more private kid's wing of the home. The huge Island Kitchen is open to the vaulted Great Room and Morning Room and looks out onto the expansive Covered Patio. The Butler's Pantry services the Dining Room and provides access to the large walkin pantry. Next to the Garage is the service porch entry which leads through the Mud Area with its own Powder, Mail Center and Freezer closet. The sizeable Master Suite with its corner windows is complemented by the elegant Master Bath with corner tub, large shower, separate vanities and huge walkin closet. The kids have their own Retreat, and each Bedroom has direct access to their own Bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

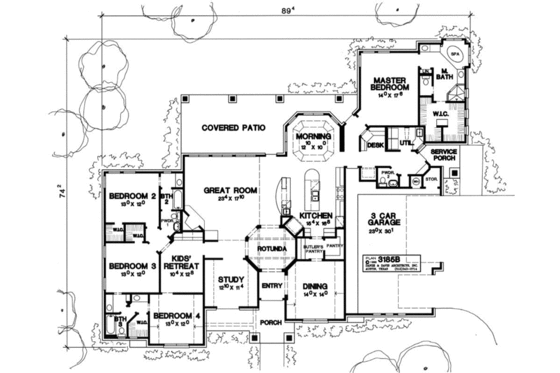

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 74'
Width : 89'

Area

Total : 3197 sq/ft
Garage : 774 sq/ft
Main Floor : 3197 sq/ft
Patios : 459 sq/ft
Porch : 264 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 7:12
Roof Framing : stick
Secondary Pitch : 4:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Play Flex Room
Storage Area

Entryway

Friend S Entry

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Structural Information Provided

Foundation Drawing

What's included in this plan set


See a sample plan set
  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2095.00
5 printed plan sets mailed to you.

8 Copy Set

$2195.00
8 printed plan sets mailed to you.

CAD Set

$3095.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$125.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$250.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$400.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$70.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
