This lovely Tradional Duplex house features three bedrooms and 2.5
bathrooms. The large living Room flows into the dining area and U-Shaped
kitchen in the rear of the house. The upper floor has two bedrooms for
the kids to be near and a master bedroom with a luxury bath and a large
walk-in-closet. Plan includes optional Active Solar Details.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

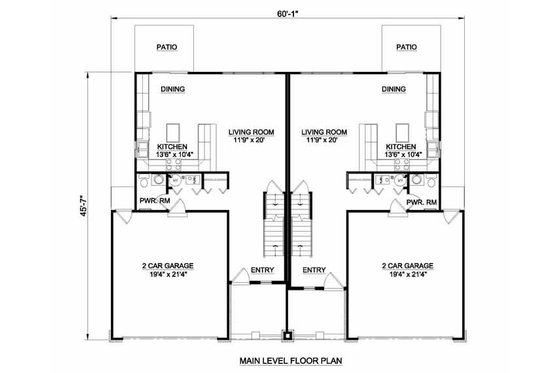

Floor Plan - Main Floor

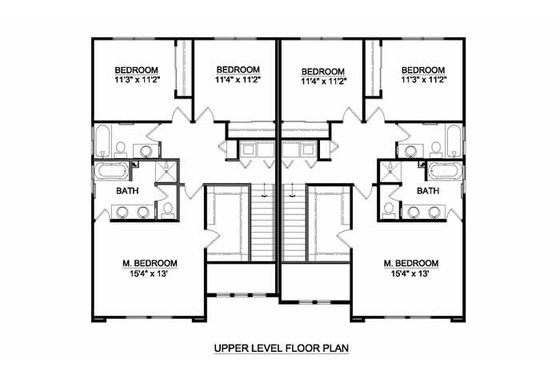

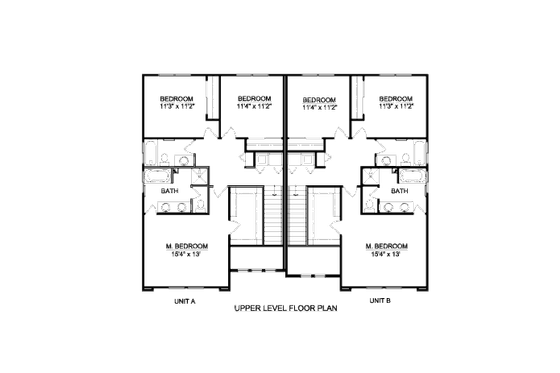

Floor Plan - Upper Floor
Full Specs & Features
Garage : 411 sq/ft
Main Floor : 1638 sq/ft
Porch : 79 sq/ft
Upper Floor : 1648 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2"x6"
Insulation : Exterior R-13, Ceiling R-38
Upstairs Master Bedrooms
Walk In Closet
Suited For Corner Lot
Suited For Narrow Lot
