This “old style” exterior hides a modern floor plan and fits this narrow lot like a glove. The Great Room is warmed by a ventless gas fireplace and contains custom cabinets for storage with transoms above. The Great Room is open to the Formal Dining Area for an airy feel. Columns highlight the area with views onto the Summer Porch through the french doors. The Summer Porch is perfect for eating or relaxing under the stars and contains an undercounter ref. and sink area for the owners outdoor grill. The unique Kitchen has an angled raised snack bar and moveable island for extra counter space. Double ovens, a cooktop, double windows and a huge walk-in pantry round out this chefs’ kitchen. Bedrooms 2 and 3 are uniquely separated from the Master Suite for privacy. They share a compartment style bath with easy access for guests.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

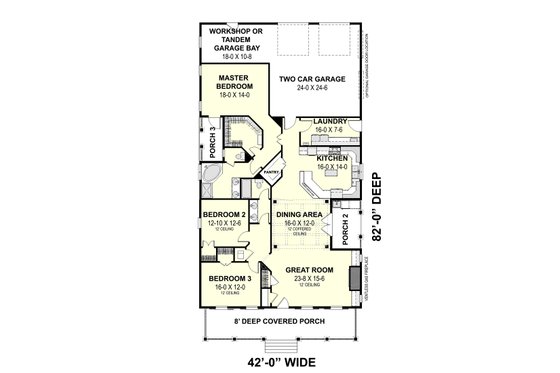

Floor Plan - Main Floor
Full Specs & Features
Depth : 82'
Height : 21' 7"
First Floor: 2208 sq/ft
Garage: 738 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : 12 feet in front section of house
Main Ceiling : 10'
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : trusses
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Rear Entry Garage
Side Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
Energy Efficient Features
width 12' 10" x depth 12' 6"
width 16' x depth 12'
width 16' x depth 12'
width 24' x depth 24' 6"
width 23' 8" x depth 15' 6"
width 16' x depth 14'
width 16' x depth 7' 6"
width 18' x depth 14'
width 18' x depth 10' 8"
