All ceiling heights are 10/0 unless otherwise noted on main floor and
9/0 on upper level.

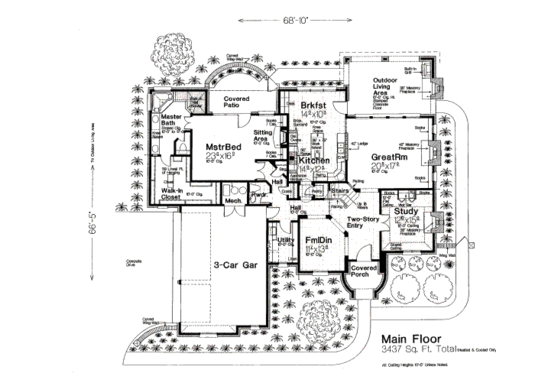

Family Dining 11/7x13/6
Great Room 20/6x17/0
Master Bedroom 23/0x16/0
Mast. Bath 10/0 - 12/0 sloped ceiling
Bedroom #2 12/0x13/6 Sloped clg. 9'-11'
Sitting Room 8/0 ceiling height
Bedroom #3 12/0x11/9
Bedroom #4 11/11x13/11
Rec Room 16/5x14/0
Garage 20/4 x 28/6 plus 1/9 bump out.
2247 sf Main Level does include the brick veneer (83 sf).
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Cover Sheet: Showing architectural rendering of residence
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
Foundation Plan and Details
Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

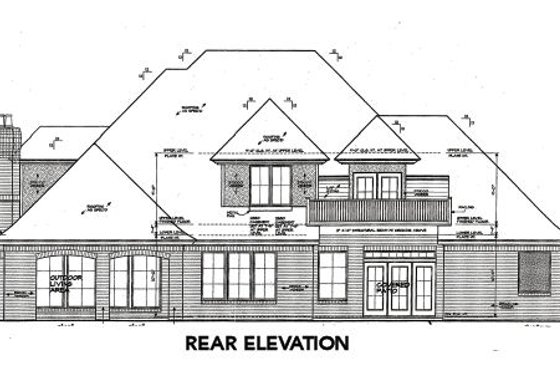

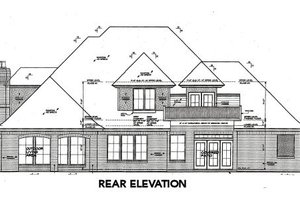

Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
