Plan 72-184

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Other Floor Plan

Reverse

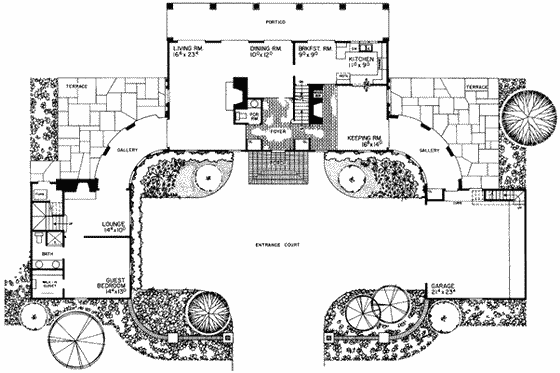

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 64'
Height : 40'
Width : 108'

Area

Total : 3450 sq/ft
Bonus: 380 sq/ft
First Floor: 1992 sq/ft height 8'
Second Floor: 1458 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Guest Suite
Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch

Rooms

3rd BR Closet:

11 sq/ft width 2' 1" x depth 5' 7"

Basement Foundation:

1152 sq/ft width 48' x depth 24'

Bathroom 2:

53 sq/ft width 6' 8" x depth 8'

Bedroom 2:

113 sq/ft width 10' x depth 11' 4"

Bedroom 2 Closet:

13 sq/ft width 2' 1" x depth 6' 4"

Bedroom 3:

177 sq/ft width 16' 8" x depth 10' 8"

Bedroom 3 Closet:

13 sq/ft width 2' 1" x depth 6' 4"

Bedroom 4:

103 sq/ft width 10' 4" x depth 10'

Bedroom 4 Closet:

9 sq/ft width 2' 1" x depth 4' 6"

Bonus Room - Finished:

144 sq/ft width 14' 4" x depth 10' 1"

Breakfast Room:

81 sq/ft width 9' x depth 9' 1"

Dining Room:

120 sq/ft width 10' x depth 12'

Foyer:

74 sq/ft width 13' 6" x depth 5' 6"

Game Room:

455 sq/ft width 21' 4" x depth 21' 4"

Garage:

497 sq/ft width 21' 4" x depth 23' 4"

Garage Storage:

466 sq/ft width 20' x depth 23' 4"

Gathering Room:

231 sq/ft width 16' 8" x depth 13' 11"

Hall:

54 sq/ft width 16' 6" x depth 3' 4"

Hall Bathroom:

60 sq/ft width 10' 8" x depth 5' 8"

Hall Closet:

8 sq/ft width 2' x depth 4' 5"

Kitchen:

99 sq/ft width 11' x depth 9' 1"

Living Room:

326 sq/ft width 14' x depth 23' 4"

Master Bathroom:

140 sq/ft width 17' 6" x depth 8'

Master Bedroom:

250 sq/ft width 16' 8" x depth 15'

Master Closet:

16 sq/ft width 2' x depth 8' 1"

Porch - Front:

91 sq/ft width 13' x depth 7'

Porch - Left:

122 sq/ft width 6' 10" x depth 18'

Porch - Rear:

384 sq/ft width 48' x depth 8'

Porch - Right:

122 sq/ft width 6' 10" x depth 18'

Powder Room:

28 sq/ft width 5' 8" x depth 5'

Slab Foundation:

528 sq/ft width 22' x depth 24'

Storage:

513 sq/ft width 22' x depth 23' 4"

Study:

186 sq/ft width 14' 4" x depth 13'

Walk-In Closet:

40 sq/ft width 6' 8" x depth 6'
