Plan 1054-13

Photographs may show modified designs.
Plan 1054-13

Key Specs


3531
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

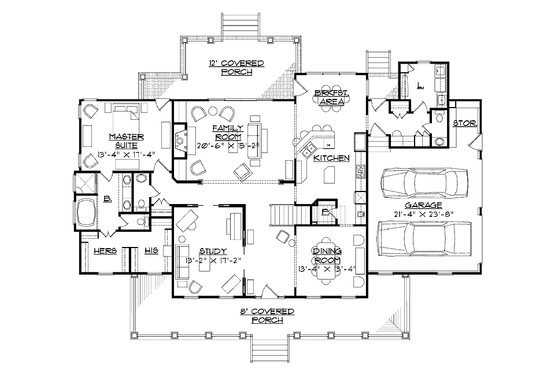

Floor Plan - Main Floor Plan

Reverse

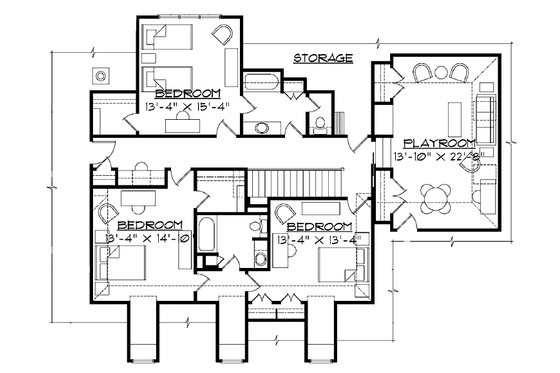

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 57' 11"
Height : 34' 4"
Width : 77' 8"

Area

Total : 3531 sq/ft
Bonus: 386 sq/ft
First Floor: 2287 sq/ft height 10'
Garage: 587 sq/ft
Porch: 791 sq/ft
Second Floor: 1244 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

93 sq/ft width 9' 4" x depth 10'

Bathroom 3:

95 sq/ft width 11' 7" x depth 8' 3"

Bedroom 2:

186 sq/ft width 13' 4" x depth 14'

Bedroom 2 Closet:

34 sq/ft width 5' 6" x depth 6' 3"

Bedroom 3:

177 sq/ft width 13' 4" x depth 13' 4"

Bedroom 3 Closet:

15 sq/ft width 7' 6" x depth 2'

Bedroom 4:

204 sq/ft width 13' 4" x depth 15' 4"

Bedroom 4 Closet:

31 sq/ft width 5' 8" x depth 5' 6"

Breakfast Area:

99 sq/ft width 13' 4" x depth 7' 6"

Dining Room:

177 sq/ft width 13' 4" x depth 13' 4"

Family Room:

310 sq/ft width 20' 6" x depth 15' 2"

Foyer:

157 sq/ft width 9' 3" x depth 17'

Garage:

504 sq/ft width 23' 8" x depth 21' 4"

Garage Storage:

51 sq/ft width 5' 9" x depth 9'

Half Bathroom:

21 sq/ft width 3' x depth 7' 4"

Kitchen:

276 sq/ft width 13' 4" x depth 20' 9"

Kitchen Island:

31 sq/ft width 3' 4" x depth 9' 4"

Laundry Room:

78 sq/ft width 8' 8" x depth 9'

Master Bathroom:

148 sq/ft width 10' 7" x depth 14'

Master Bedroom:

231 sq/ft width 17' 4" x depth 13' 4"

Master Closet:

132 sq/ft width 17' 3" x depth 7' 8"

Mud Room:

73 sq/ft width 11' 8" x depth 6' 4"

Pantry:

19 sq/ft width 4' 5" x depth 4' 5"

Play Room:

313 sq/ft width 13' 10" x depth 22' 8"

Powder Room:

19 sq/ft width 3' x depth 6' 7"

Study:

228 sq/ft width 13' 5" x depth 17'

Wet Bar:

5 sq/ft width 2' x depth 2' 8"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

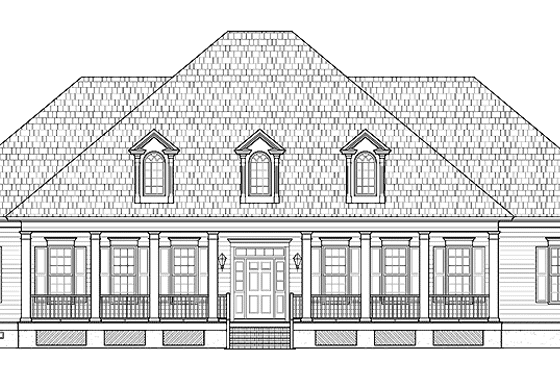

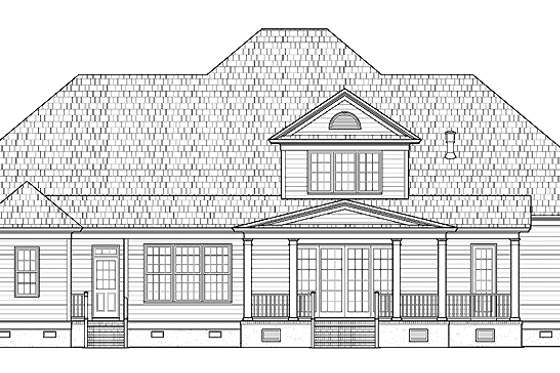

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
