Plan 117-397

Photographs may show modified designs.
Plan 117-397

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 6
Baths : 3
Stories: 2
Garages: 0

Dimension

Depth : 46' 3"
Height : 29' 7"
Width : 32'

Area

Total : 3725 sq/ft

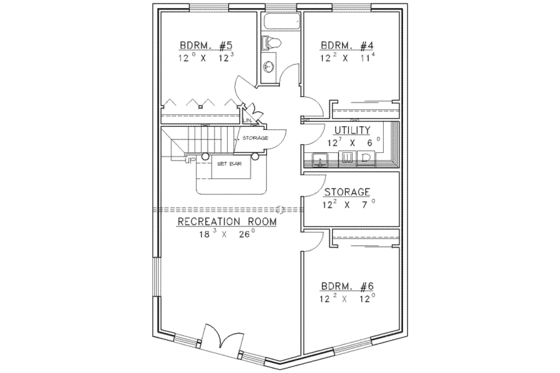

Basement Living: 1462 sq/ft

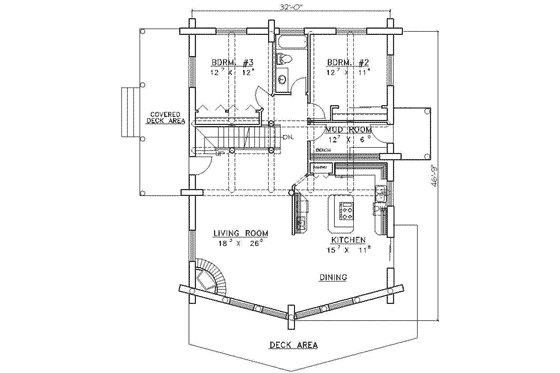

First Floor: 1412 sq/ft height 9'

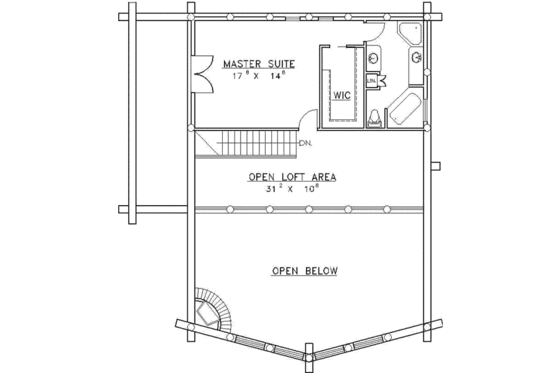

Second Floor: 851 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Log
Framing : Log

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Loft
Storage Area

Lot Characteristics

Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony

More

Suited For Vacation Home

Rooms

Bedroom 2:

142 sq/ft width 12' 7" x depth 11' 4"

Bedroom 3:

155 sq/ft width 12' 7" x depth 12' 4"

Bedroom 4:

137 sq/ft width 12' 2" x depth 11' 4"

Bedroom 5:

147 sq/ft width 12' x depth 12' 3"

Bedroom 6:

146 sq/ft width 12' 2" x depth 12'

Kitchen:

181 sq/ft width 15' 7" x depth 11' 8"

Living Room:

474 sq/ft width 18' 3" x depth 26'

Loft:

332 sq/ft width 31' 2" x depth 10' 8"

Master Suite:

259 sq/ft width 17' 8" x depth 14' 8"

Mud Room:

75 sq/ft width 12' 7" x depth 6'

Recreation Room:

474 sq/ft width 18' 3" x depth 26'

Storage:

85 sq/ft width 12' 2" x depth 7'

Utility Room:

75 sq/ft width 12' 7" x depth 6'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

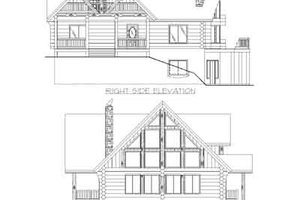

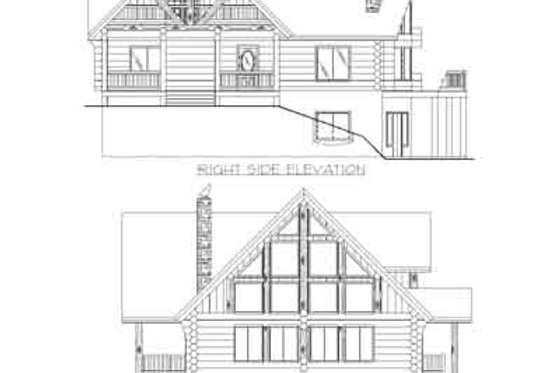

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

Reproducible Set

$1170.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$1260.00
5 printed plan sets mailed to you.

CAD Set

$1350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$1350.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$90.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
