Plan Description


With California style and Mediterranean good looks, this striking stucco manor is sure to delight. The portico and foyer open to reveal a smart plan with convenience and flexibility in mind. The columned living room has a warming fireplace and access to the rear property. In the gourmet kitchen, an open design with an island and walk-in pantry will please any chef. From here, the elegant dining room and sunny nook are easily served. The leisure room is separated from the game room by a built-in entertainment center. The game area can also be finished off as a bedroom. To the rear, a guest room is perfect for frequent visitors or as an in-law suite. The master suite features a bright sitting area, oversized walk-in closets and a pampering bath with a whirlpool tub. Extra features not to be missed: the outdoor grill, game-room storage and gallery window seat.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Main Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 103' 8"
Height : 25'
Width : 80'

Area

Total : 3757 sq/ft
First Floor: 3757 sq/ft
Garage: 738 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Combination Truss/Conventional
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Storage Area
Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Screened Porch

Rooms

Bedroom 2:

146 sq/ft width 12' 2" x depth 12'

Bedroom 3:

158 sq/ft width 12' 2" x depth 13'

Bedroom 4:

171 sq/ft width 12' 4" x depth 13' 11"

Breakfast Room:

67 sq/ft width 7' x depth 9' 8"

Covered Veranda:

592 sq/ft

Dining Room:

122 sq/ft width 12' x depth 10' 2"

Game Room:

176 sq/ft width 12' 8" x depth 13' 11"

Garage:

738 sq/ft width 21' x depth 33' 2"

Kitchen:

210 sq/ft width 14' x depth 15'

Living Room:

259 sq/ft width 18' 9" x depth 13' 10"

Master Bedroom:

281 sq/ft width 16' 10" x depth 16' 9"

Portico:

68 sq/ft

Study:

203 sq/ft width 11' x depth 18' 6"

Utility Room:

90 sq/ft width 8' 6" x depth 10' 8"

What's included in this plan set


See a sample plan set

This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

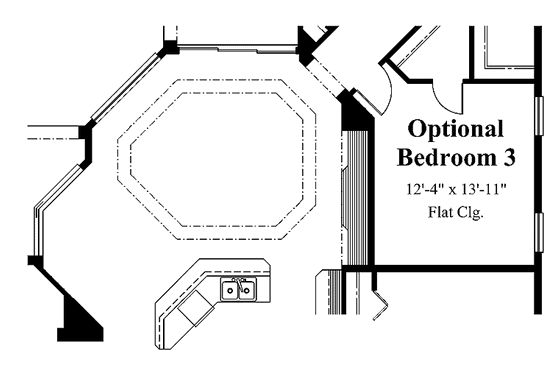

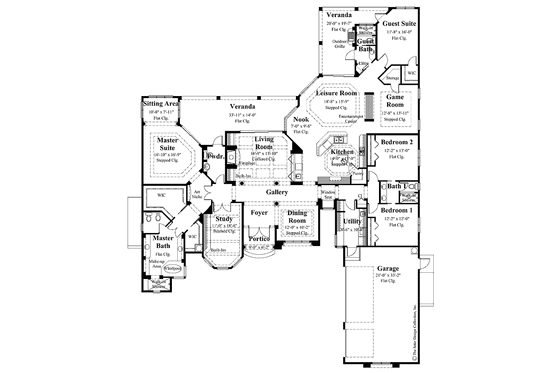

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

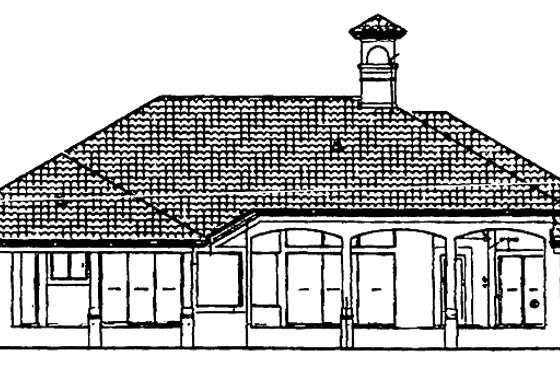

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.
