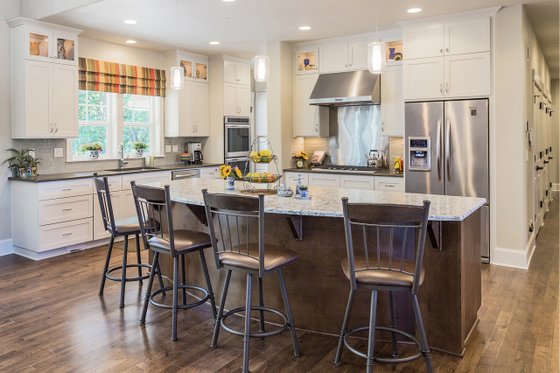

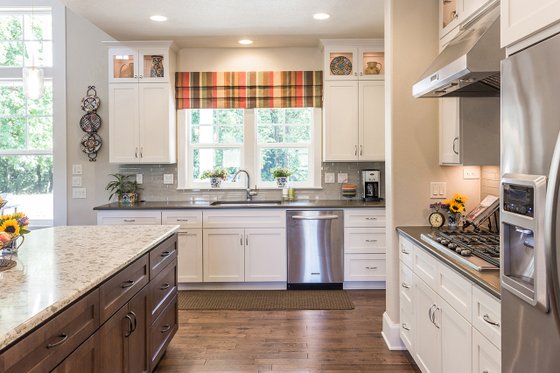

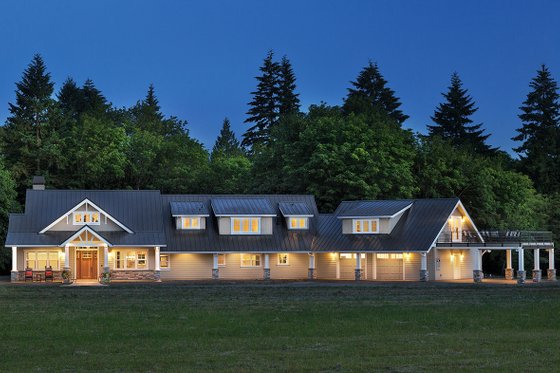

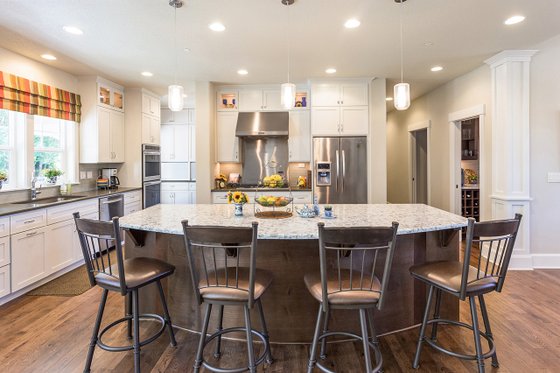

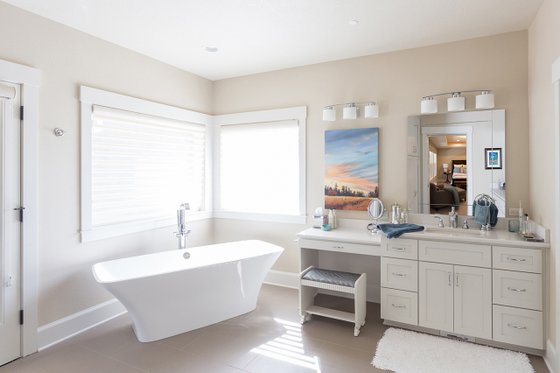

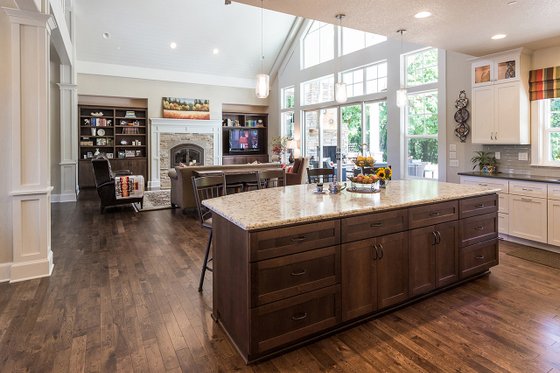

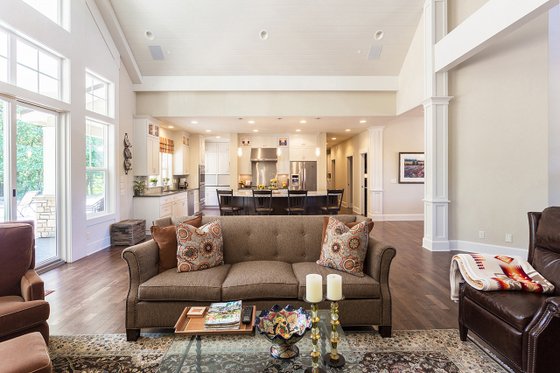

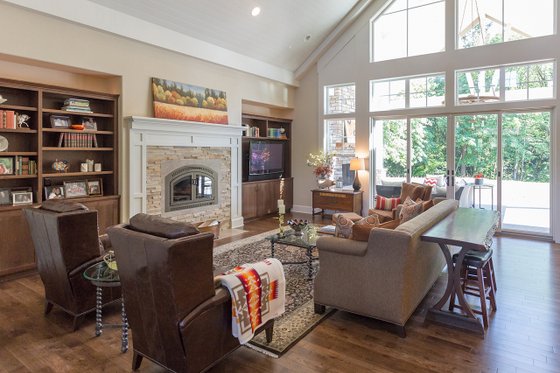

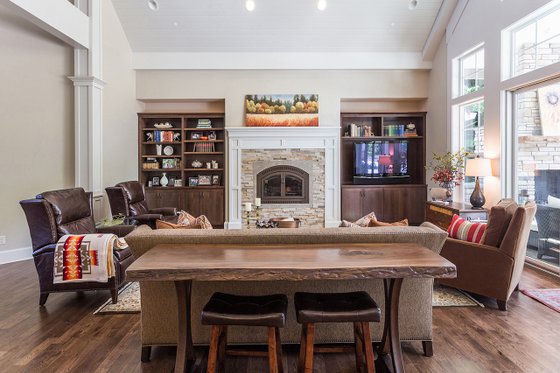

Depending on the weather and time of year, people can congregate in the kitchen and vaulted great room, which peaks at approximately 21 feet and carries out to the vaulted patio in this lodge style home. Covered walkways and patios wrap around three sides of the home. The luxurious owners’ suite boasts two large walk-in closets plus a bathroom with a heated tile floor, deep soaking tub, private toilet, and walk-in shower.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

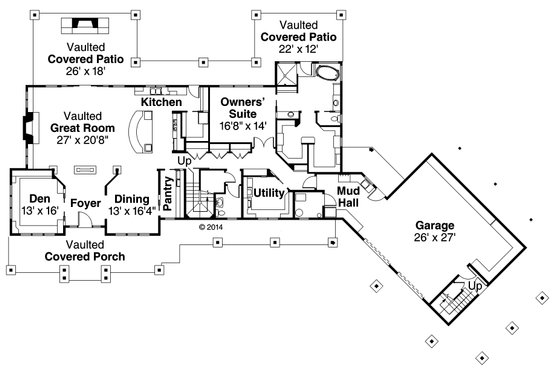

Floor Plan - Main Floor
Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 87' 5"
Height : 26' 7"
Bonus: 525 sq/ft
First Floor: 2897 sq/ft height 9'
Garage: 1173 sq/ft
Second Floor: 918 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 9/12
Roof Framing : Truss/Stick
Roof Load : 25
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle/Stone
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
Bonus/ Vaulted Storage:
525 sq/ft width 26' x depth 13'
191 sq/ft width 14' x depth 13' 8"

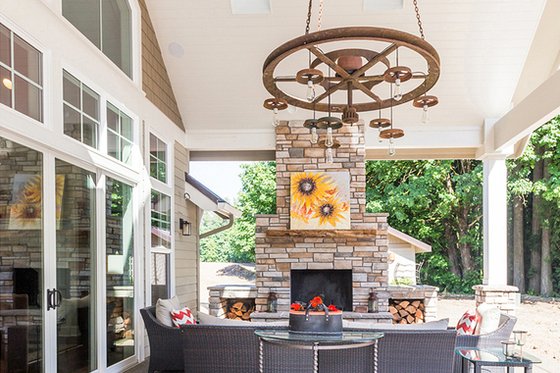

Covered Rear Patio 1:
468 sq/ft width 26' x depth 18'
Covered Rear Patio 2:
264 sq/ft width 22' x depth 12'
208 sq/ft width 13' x depth 16'
186 sq/ft width 13' x depth 16' 4"
1173 sq/ft width 26' x depth 27'
558 sq/ft width 27' x depth 20' 8"
217 sq/ft width 16' 8" x depth 13'
233 sq/ft width 16' 8" x depth 14'
168 sq/ft width 14' x depth 12'
264 sq/ft width 12' x depth 22'
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

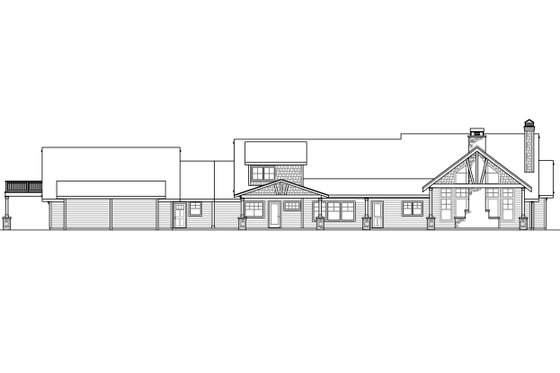

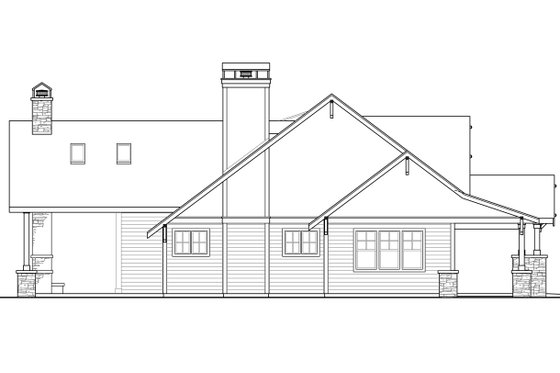

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
PDF Print Set
A non-modifiable, print only PDF file
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Master Set
An unlocked, modifiable PDF file
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Master Builder Package
Includes CAD Set, PDF Masters and Unlimited Build License
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
Additional Use License.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
