Plan Description

This plan is so fresh and new that the working drawings will take extra time to complete. Please allow up to 10 extra days of processing time.

This elegant design fits nicely on a narrow lot and provides a lot of flexibility in the layout. Families will enjoy the spaciousness and option for a fifth bedroom. Later on, when kids are gone (or maybe they come back as adults, or simply have got a lot of visitors), the four private suites will be much appreciated. An elevator option makes it easier to get around, especially for an elderly relative. Not available to build in the Florida counties of Lee and Collier. Modification to add elevator: $525.00

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

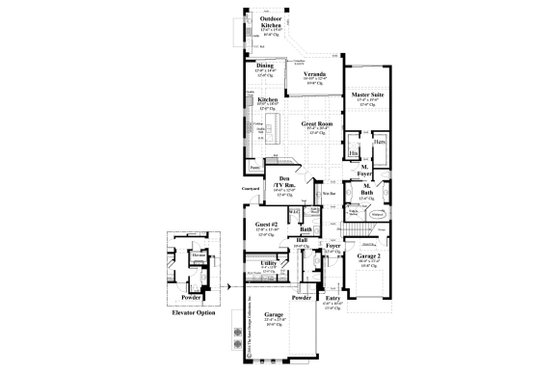

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

LEARN MORE

Floor Plan - Upper Floor

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 107' 4"

Height : 32' 1"

Width : 44' 8"

Area

Total : 3882 sq/ft

Decks : 18 sq/ft

Garage : 807 sq/ft

Main Floor : 2522 sq/ft

Porch : 830 sq/ft

Upper Floor : 1360 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 10' to 11' tray ceiling in Bedroom 3; 12' 6" ceiling in Upper Hallway.

Main Ceiling : 12'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 5:12

Roof Framing : Truss/Stick

Roof Type : Concrete/Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block 1st Floor with 2 x 6 2nd Floor

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Mud Room

Wet Bar

Garage Features

Front Entry Garage

Split Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Rooms

Bedroom 2:

width 12' 8" x depth 13' 10"

Bedroom 3:

width 17' 2" x depth 17' 4"

Bedroom 4:

width 13' 10" x depth 14'

Covered Front Porch:

width 6' x depth 10'

Covered Rear Balcony:

width 13' 4" x depth 17'

Den:

width 14' 6" x depth 12'

Dining Room:

width 12' x depth 14'

Garage I:

width 22' 4" x depth 23' 8"

Garage II:

width 13' 4" x depth 18'

Great Room:

width 19' 4" x depth 20' 4"

Kitchen:

width 10' x depth 18'

Master Bedroom:

width 13' 4" x depth 19'

Outdoor Kitchen:

width 12' 6" x depth 15'

Study/Bedroom 5:

width 13' 8" x depth 14'

Upper Hallway:

width 9' 4" x depth 12'

Utility Room:

width 8' 4" x depth 12' 8"

Veranda:

width 16' 10" x depth 12' 4"

What's included in this plan set

See a sample plan set

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference.
Foundation Plan(s): This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. Important: actual structural information should be obtained by a locally licensed engineer for your specific site location.
Floor Plan(s): This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

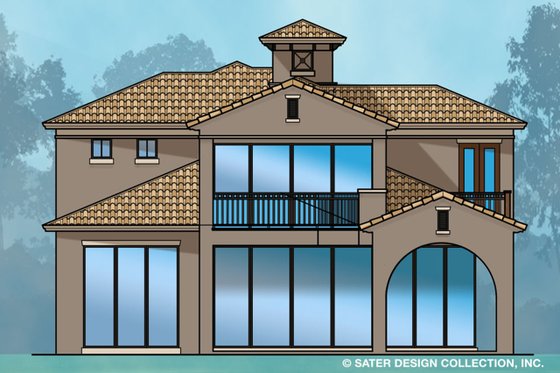

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.
Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.
Overhead Roof Plan(s): The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.
Cross Section(s): This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.
Electrical Plan(s): This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
Construction Notes / Detail(s): This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable). Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Framing Detail(s): Homes with a basement or crawlspace will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Wall Section(s): This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.
Other Note(s): Reflected ceiling plan: this designer's most distinguishable feature is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.
Site Plan(s): The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.
