Plan 929-947

Key Specs

3983
sq ft

4
Beds

4.5
Baths

1
Floors

3
Garages

Plan Description

A hint of Tudor flair adorns the exterior of this hillside walkout estate home, most visibly in the stucco-and-timber detailed central gable but also in the style of the windows. An abundance of bay windows also creates interesting turret-like details on the roof. Inside, you'll find spacious living accommodations on three levels. The main floor features the great room, oversize dining room, and gourmet kitchen complete with a walk-in pantry and massive island. Nearby is a generous screen porch with a grill and sink. The super-deluxe master suite offers a private porch, luxurious bathroom, and easy access to the study (or guest room). Two more bedrooms and a spacious rec room with window seats wait on the lower level, accessed by the elevator or the staircase. A huge bonus room offers more space above the garage.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

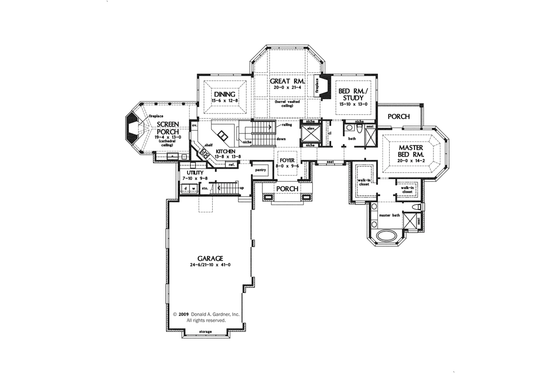

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

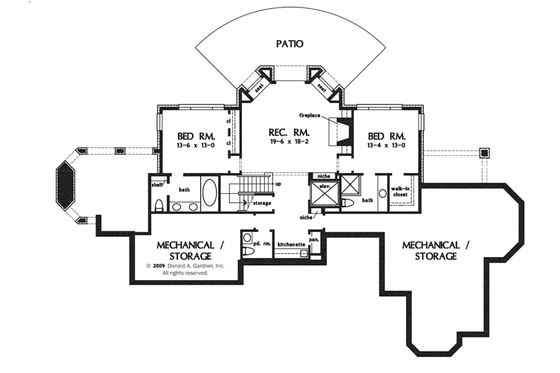

Floor Plan - Lower Floor

Reverse

Floor Plan - Other Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 1

Garages: 3

Dimension

Depth : 86'

Height : 45' 4"

Width : 95' 1"

Area

Total : 3983 sq/ft

Basement Living: 1482 sq/ft height 9'

Basement Unfinished: 976 sq/ft

Bonus: 604 sq/ft height 9'

First Floor: 2501 sq/ft height 10'

Garage: 1022 sq/ft height 9'

Patio: 432 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 14:12

Roof Framing : Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Open Floor Plan

Storage Area

Sunroom

Unfinished Future Space

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Rear Porch

Screened Porch

Wheelchair Adaptable

Rooms

Bedroom 2:

width 15' 10" x depth 13'

Bedroom 3:

width 13' 6" x depth 13'

Bedroom 4:

width 13' 4" x depth 13'

Dining:

width 15' 6" x depth 12' 6"

Foyer:

width 8' x depth 9' 6"

Garage:

1022 sq/ft width 24' 6" x depth 40'

Great Room:

width 20' x depth 21' 4"

Kitchen:

width 13' 8" x depth 13' 8"

Master Bedroom:

width 20' x depth 14' 2"

Porch Screened:

302 sq/ft width 19' 4" x depth 13'

Rec. Room:

width 19' 6" x depth 18' 2"

Utility:

width 7' 10" x depth 9' 8"

What's included in this plan set

See a sample plan set

This designer charges $49.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
