Plan 119-182

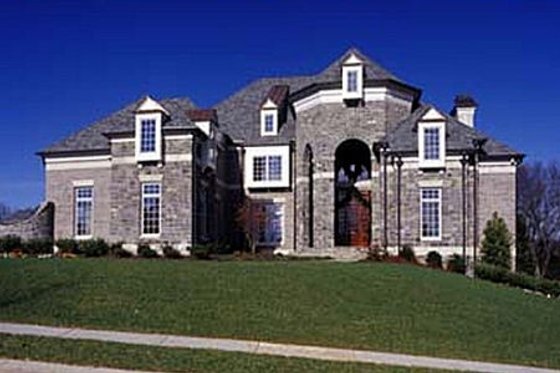

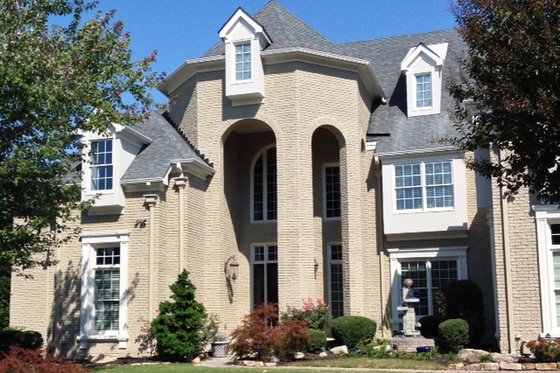

Photographs may show modified designs.
Plan 119-182

Key Specs


4041
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

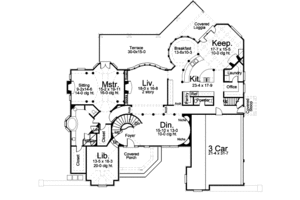

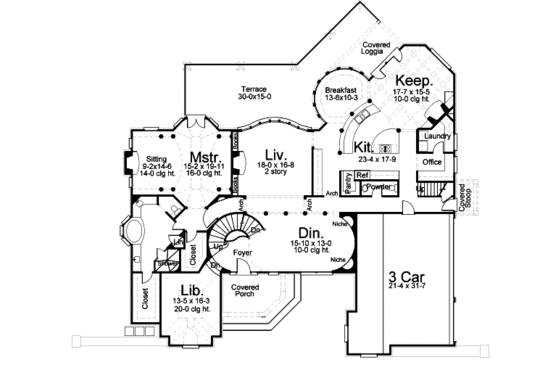

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 70'
Height : 43'
Width : 80'

Area

Total : 4041 sq/ft
Basement Unfinished: 2695 sq/ft
Bonus: 874 sq/ft
First Floor: 2912 sq/ft height 10'
Garage: 720 sq/ft
Second Floor: 1128 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Master Sitting Area
Play Flex Room
Storage Area
Sunroom
Unfinished Future Space

Garage Features

Oversized Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Screened Porch

Rooms

3rd BR Closet:

27 sq/ft width 5' 2" x depth 5' 4"

Bathroom 2:

53 sq/ft width 5' 10" x depth 9' 2"

Bathroom 3:

63 sq/ft width 9' 10" x depth 6' 6"

Bedroom 2:

249 sq/ft width 15' 4" x depth 16' 3"

Bedroom 2 Closet:

26 sq/ft width 5' 10" x depth 4' 7"

Bedroom 3:

189 sq/ft width 14' 5" x depth 13' 2"

Bedroom 3 Closet:

26 sq/ft width 5' 10" x depth 4' 7"

Bedroom 4:

195 sq/ft width 15' x depth 13'

Bedroom 4 Closet:

31 sq/ft width 5' 10" x depth 5' 4"

Breakfast Room:

138 sq/ft width 13' 6" x depth 10' 3"

Den/Office or Bedroom 1:

218 sq/ft width 13' 5" x depth 16' 3"

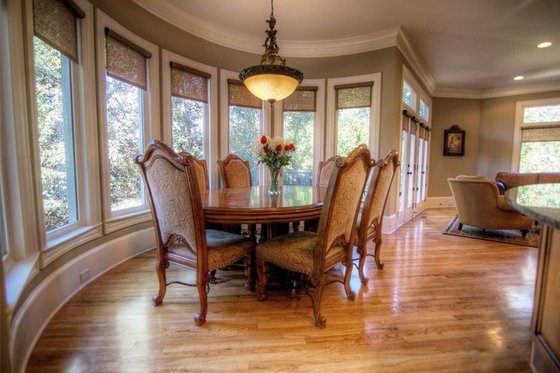

Dining Room:

205 sq/ft width 15' 10" x depth 13'

Foyer:

267 sq/ft width 17' 10" x depth 15'

Garage:

720 sq/ft width 21' 4" x depth 31' 7"

Gathering Room:

271 sq/ft width 17' 7" x depth 15' 5"

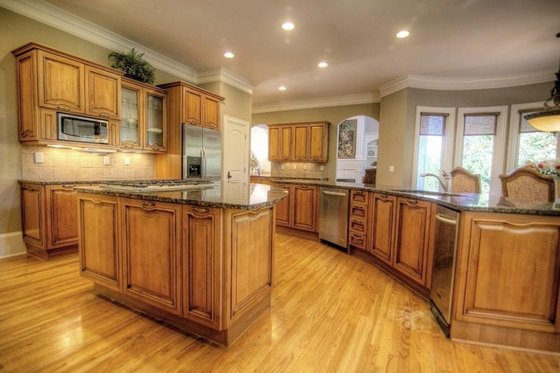

Kitchen:

414 sq/ft width 23' 4" x depth 17' 9"

Laundry Room:

58 sq/ft width 8' 5" x depth 7'

Living Room:

300 sq/ft width 18' x depth 16' 8"

Master Bathroom:

207 sq/ft width 11' 11" x depth 17' 5"

Master Bedroom:

302 sq/ft width 15' 2" x depth 19' 11"

Master Closet - Hers:

77 sq/ft width 6' 6" x depth 11' 11"

Master Closet - His:

55 sq/ft width 6' x depth 9' 3"

Optional Bonus Room:

344 sq/ft width 21' x depth 17' 2"

Porch - Rear:

450 sq/ft width 30' x depth 15'

Powder Room:

31 sq/ft width 8' 7" x depth 3' 8"

What's included in this plan set


See a sample plan set
  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.
  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2095.00
5 printed plan sets mailed to you.

CAD Set

$2945.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$1475.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$195.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
