Plan 124-753

Photographs may show modified designs.
Plan 124-753

Key Specs


4090
sq ft

3
Beds

3.5
Baths

2
Floors

3
Garages

Plan Description


Updated Craftsman bungalow designed for construction on a view lot that slopes down at the rear. Vaulted ceilings add loft to front porch and deck, volume to foyer, den, great room, owners suite. Daylight basement has two naturally bright bedroom suites, plus a large family room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

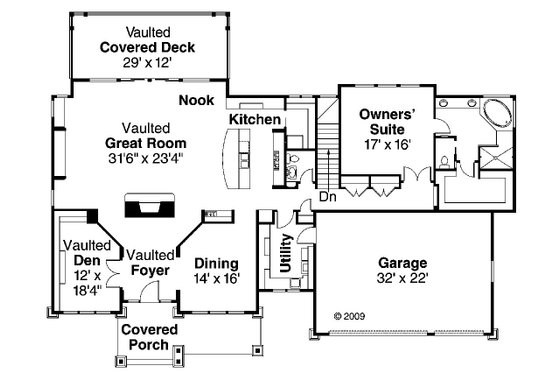

Floor Plan - Main Floor Plan

Reverse

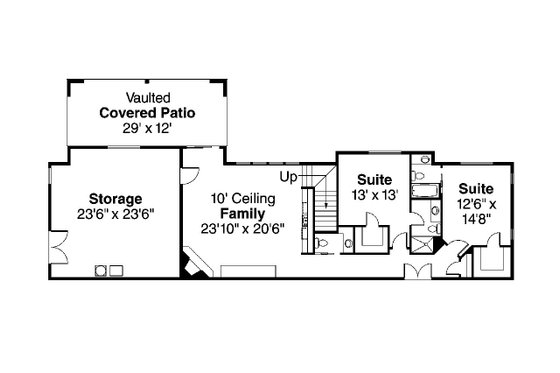

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 64'
Height : 26' 2"
Width : 85'

Area

Total : 4090 sq/ft
Basement Living: 1373 sq/ft height 9'
First Floor: 2717 sq/ft height 9'
Garage: 578 sq/ft height 9'
Storage: 735 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone/Shingles
Framing : 2"x6"

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

Rooms

Deck:

348 sq/ft width 29' x depth 12'

Den:

219 sq/ft width 12' x depth 18' 4"

Family Room:

488 sq/ft width 23' 10" x depth 20' 6"

Garage:

704 sq/ft width 32' x depth 22'

Great Room:

734 sq/ft width 31' 6" x depth 23' 4"

Guest Suite 1:

169 sq/ft width 13' x depth 13'

Guest Suite 2:

183 sq/ft width 12' 6" x depth 14' 8"

Master Suite:

272 sq/ft width 17' x depth 16'

Patio:

348 sq/ft width 29' x depth 12'

Storage:

552 sq/ft width 23' 6" x depth 23' 6"

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

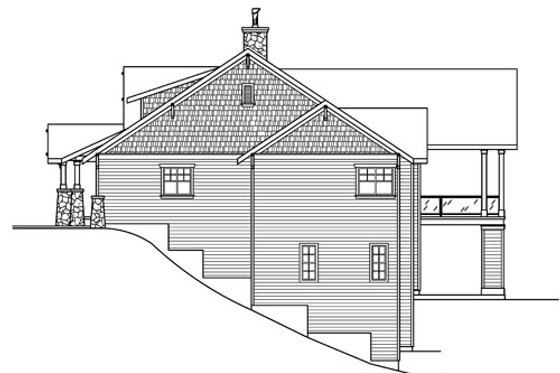

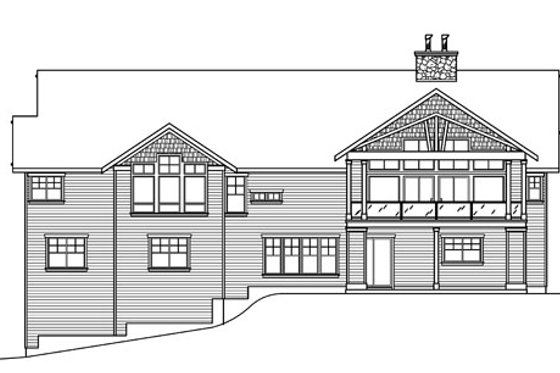

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1655.00
5 printed plan sets mailed to you.

PDF Print Set

$1655.00
A non-modifiable, print only PDF file

8 Copy Set

$1880.00
8 printed plan sets mailed to you.

PDF Master Set

$3350.00
An unlocked, modifiable PDF file

CAD Set

$3675.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1325.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Right-Reading Reverse

$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.

Call: 1-800-913-2350

or

Email: sales@houseplans.com
